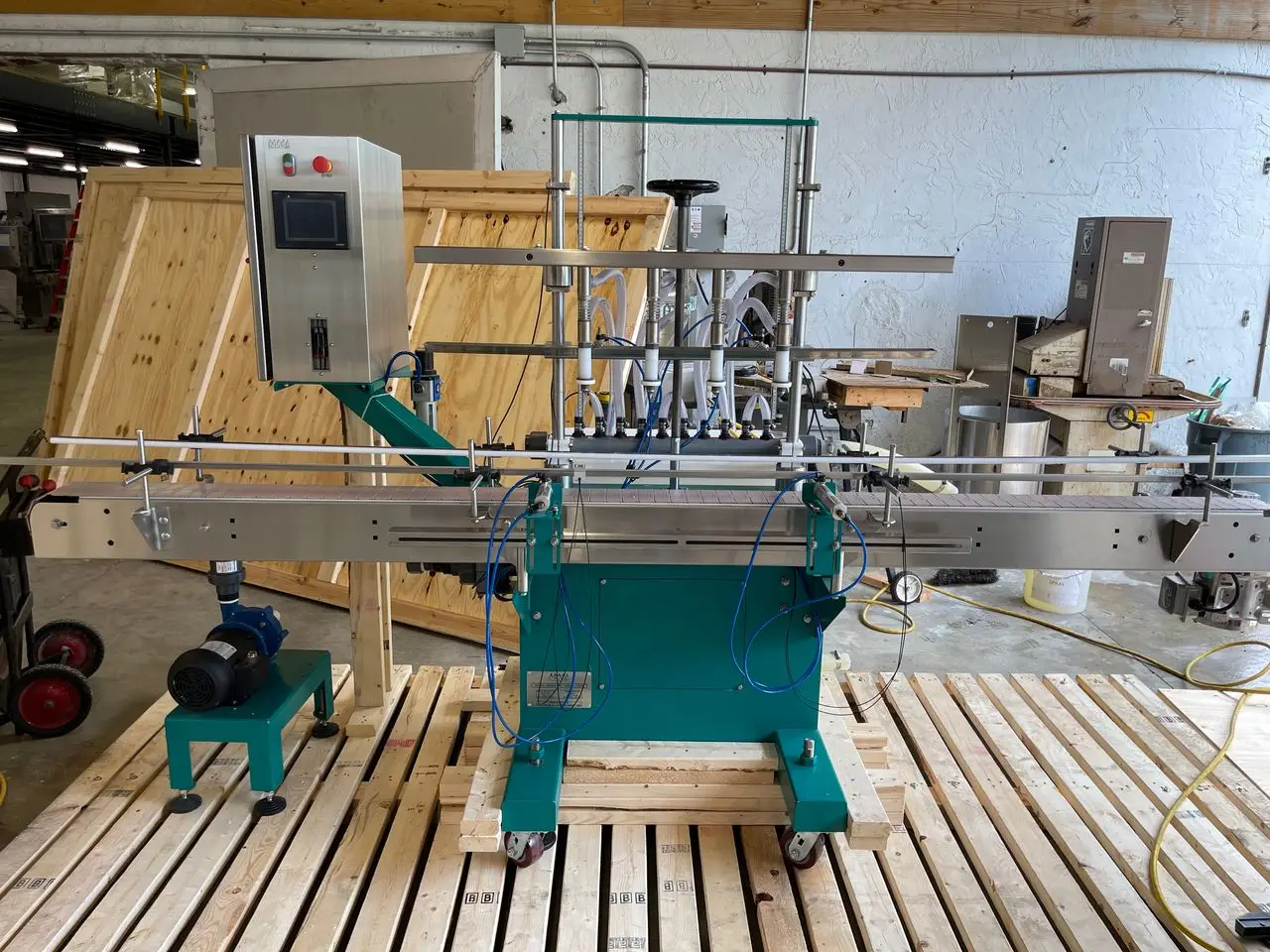

This brand new 4-head filler for bleach is a corrosion-resistant pressure overflow filler. The machine is currently setup for bleach gallon containers. It has never been used and is still in its original crate ready to ship.
The machine is expandable up to 10 filling heads. You simply need to purchase additional nozzles.
Acasi GI3300-Cor1
Includes the following features and options:
-

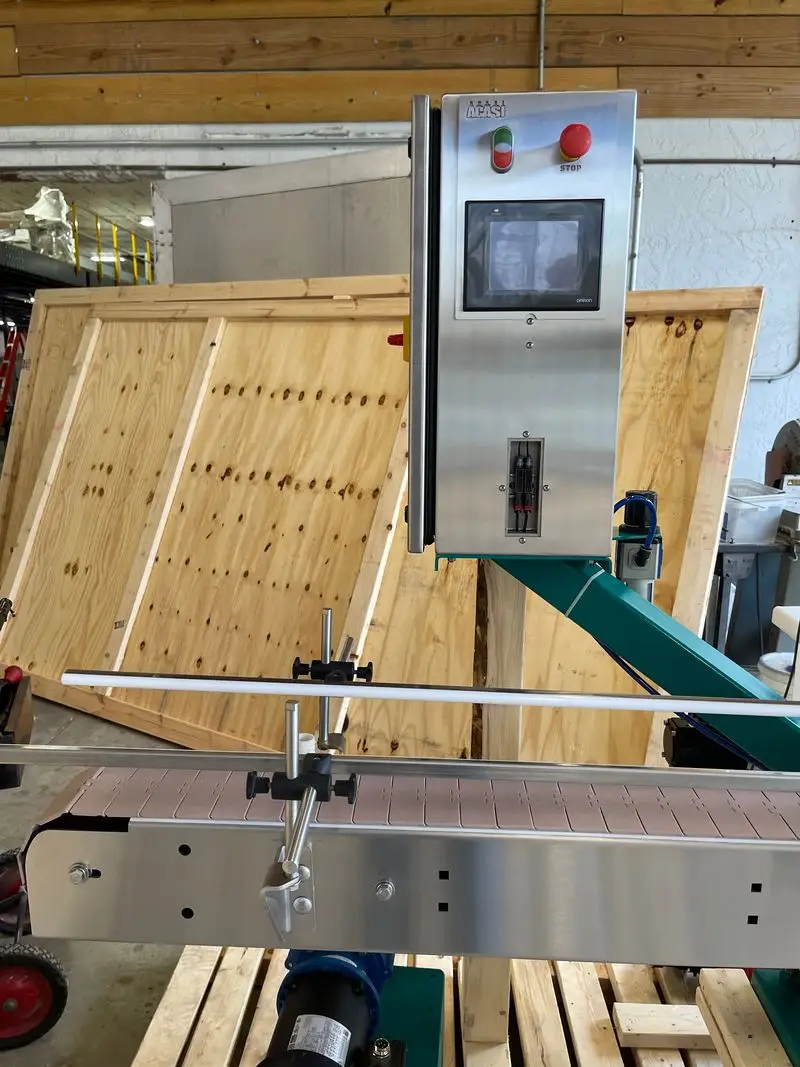

Expandable corrosion-resistant pressure overflow with OMRON touch screen control panel color display
-

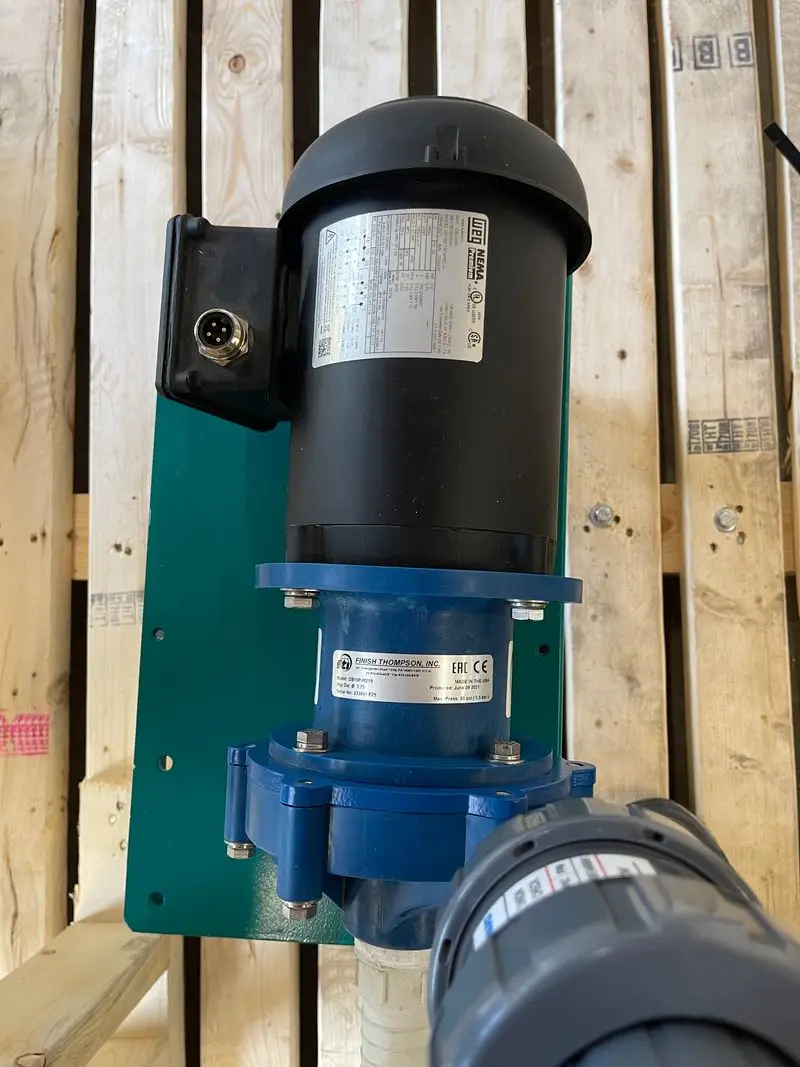

1 HP corrosion-resistant centrifugal pump
-

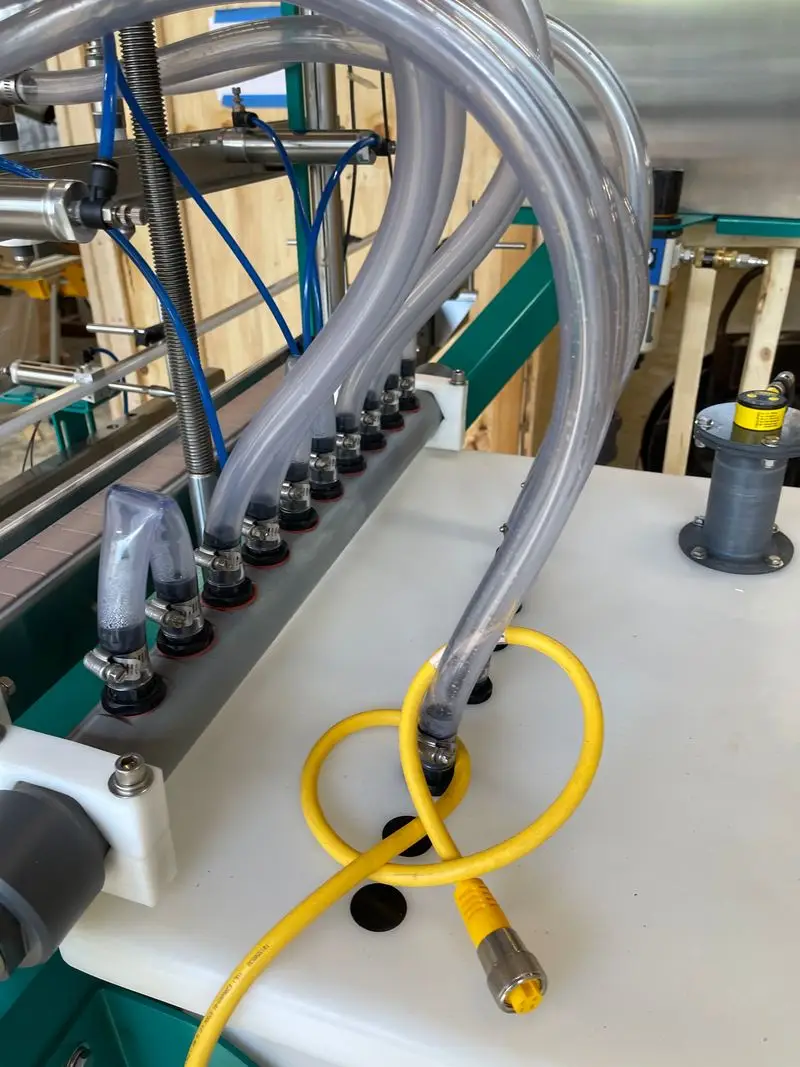

(4) 3/4-in. Pressure overflow nozzles manufactured in Titanium, with Viton o-rings, Teflon seals, nylon spacers and soft polyurethane or silicone bottle to seal nozzle
-

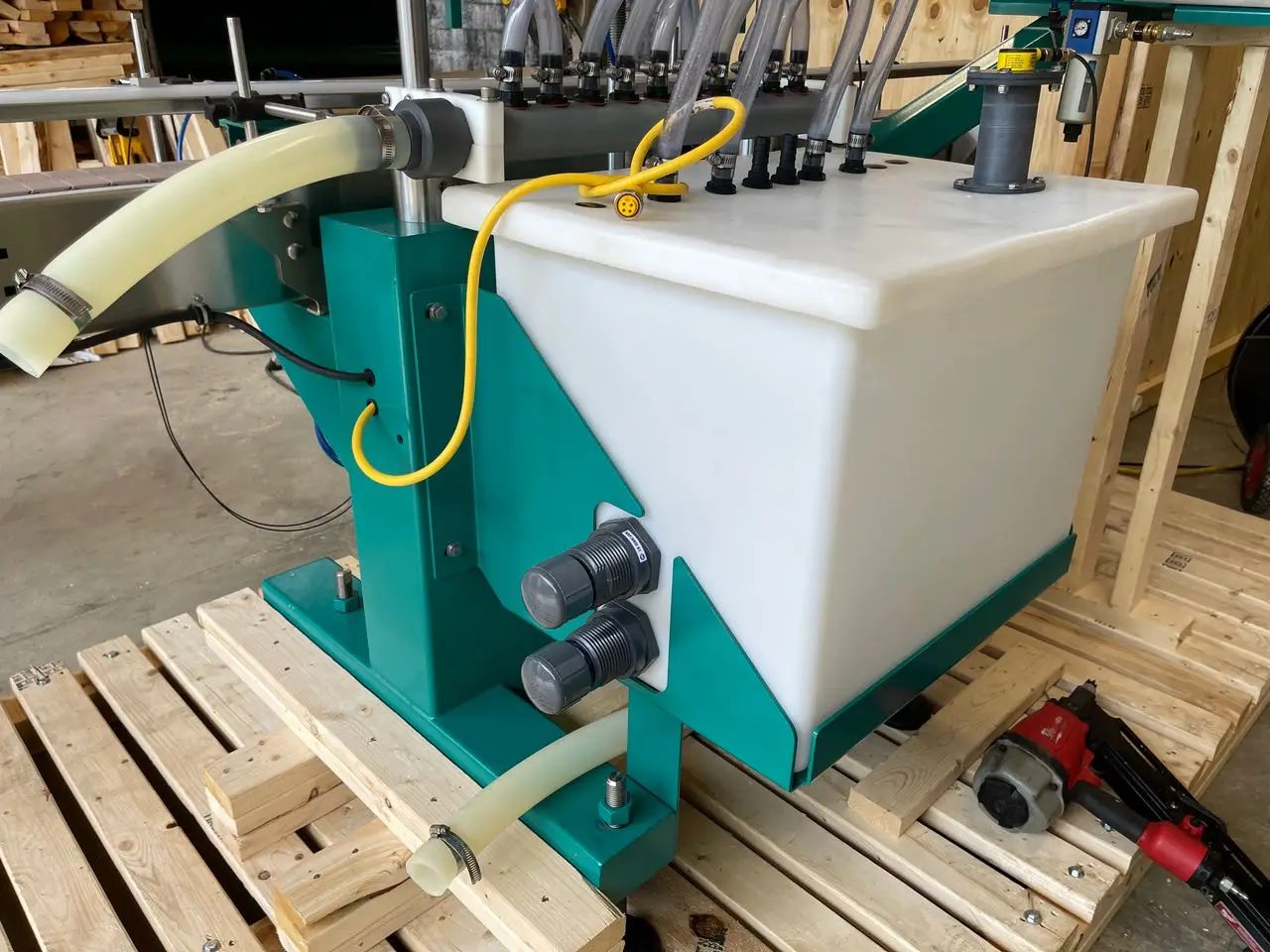

20-gallon HDPE tank
-

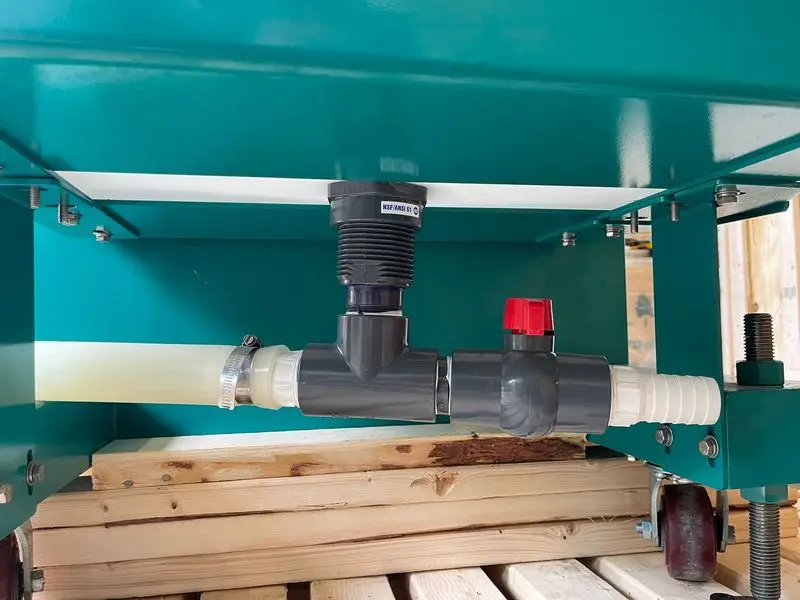

Manifold manufactured in PVC
-

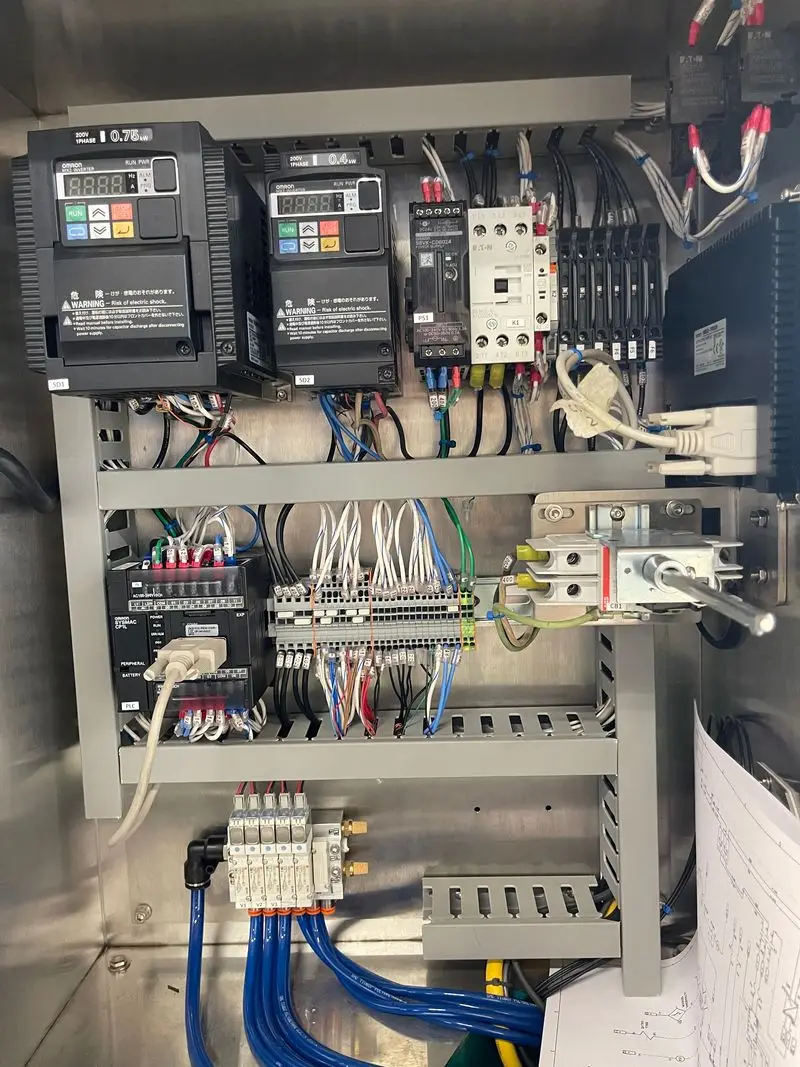

PLC controlled, pneumatic driven drip tray
-

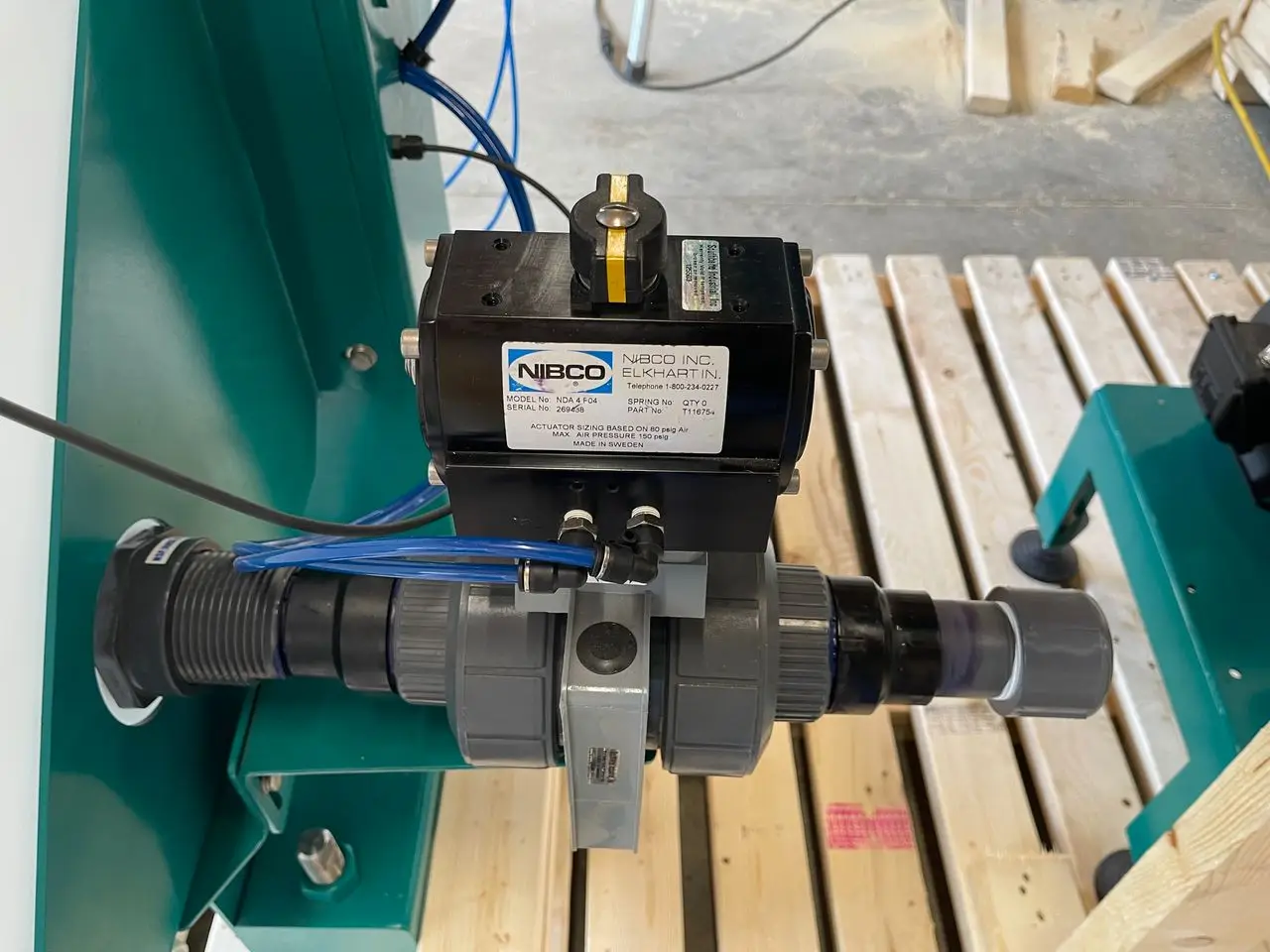

Plastic Pneumatically actuated ball valve installed on the side of the tank
-

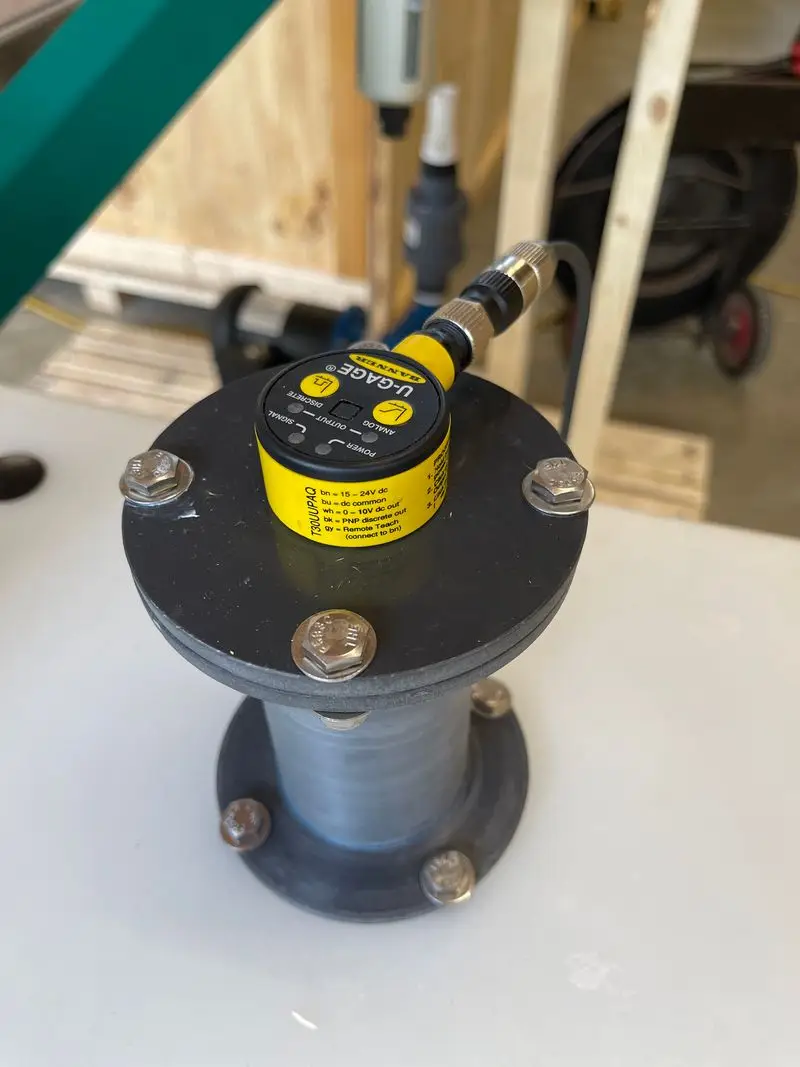

Plastic ultrasonic sensor for level detection installed on tank cover
-
Backup sensor to stop conveyor and filler
-

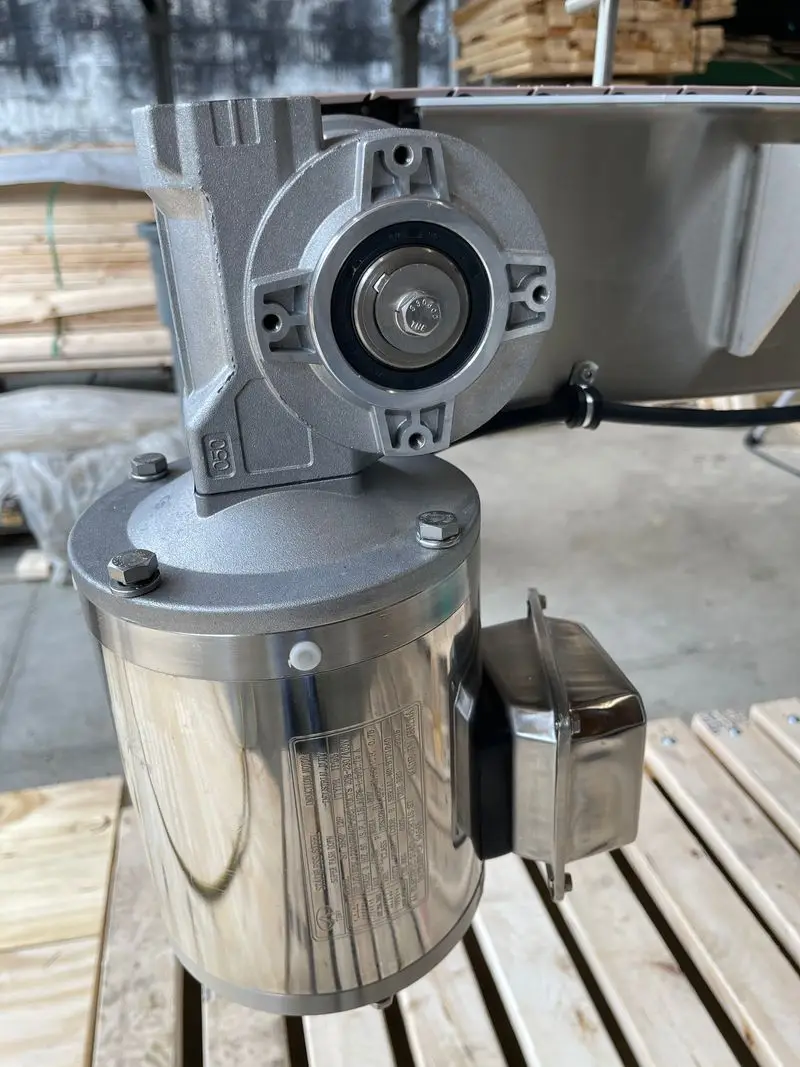

10 Ft. Conveyor, acetyl chain, 4.5 in. wide, speed control installed in filler's control panel
-
220V, 50Hz/60Hz, 10 Amps | 5 CFM @ 80 psi
