ROPP Capper

Roll on Pilfer Proof (bottle closure system)

A ROPP capper is a particular kind of bottling machine that is used to cap bottles with Roll on Pilfer Proof (ROPP) caps. These caps, which are also known as pilfer-proof caps, are frequently used in the beverage industry, particularly when producing wine bottles, distilled spirits, and olive oil bottles. In the pharma industry, ROPP caps are also used to provide tamper-evident seals on medication bottles.

For beverage producers looking to expand their production scale, efficiency, and quality, ROPP capping machines are an ideal investment because they are typically fully automated and capable of applying the caps to bottles with a high degree of consistency and at higher speeds.

The high degree of accuracy and reliability of ROPP capping machines is a key element of choice for manufacturers who need to cap their products with a tamper-proof closure. For many industries that use ROPP caps to seal their bottled products, ROPP capping machines are a crucial component of the bottling process.

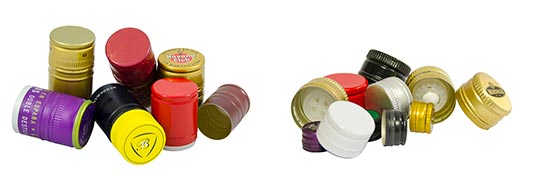

ROPP Caps

Available Equipment

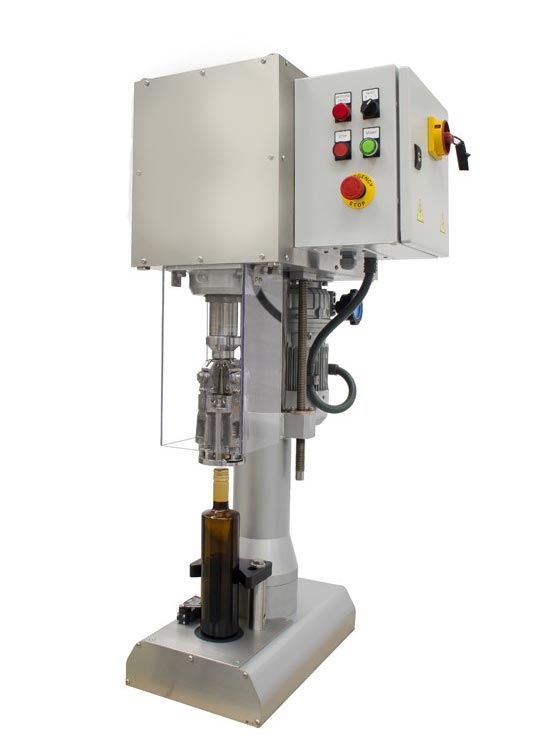

Semi-Automatic ROPP Capper

Model ROP1-S

Semi-automatic ROPP capper

Up to 15 bottles per minute

  • Used to apply ROPP caps onto PVC, PET, glass bottles, etc.
  • Motor-reducer for the automatic up and down system of the head-piston.
  • Independent variable speed motor that regulates the turning and revolutions of the capping head, depending on the type of caps and bottles to be used.
  • Full electric equipment, with control panel included.
REQUEST QUOTE

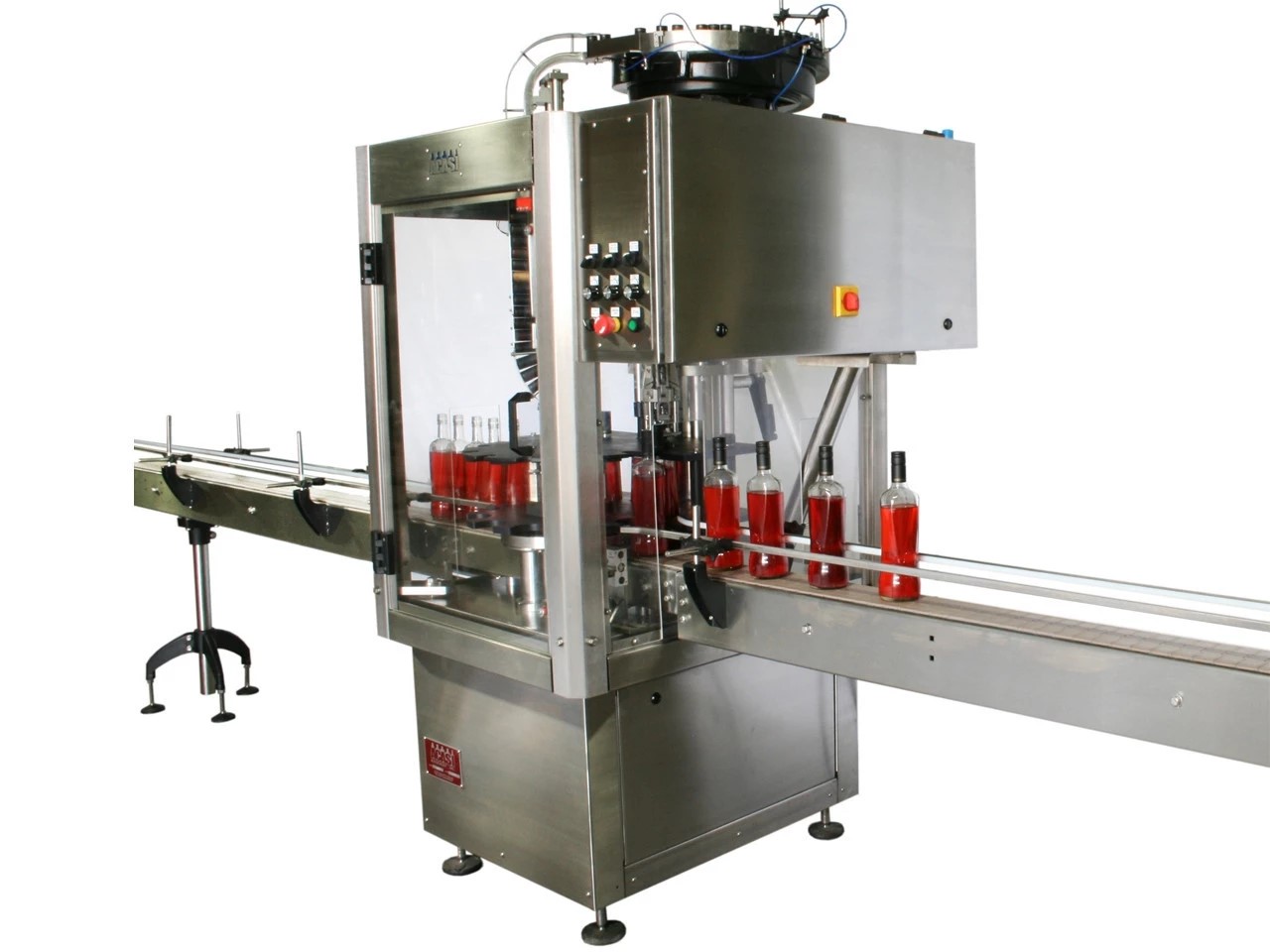

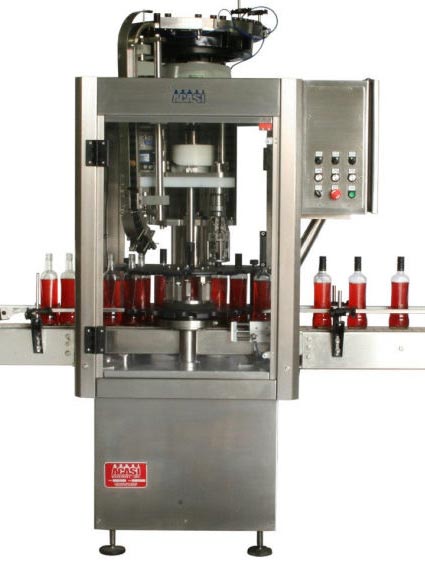

Single-head Automatic ROPP Capper

Model ROP1-VIB

Single-head Automatic ROPP capper

Up to 50 bottles per minute

  • Used to apply ROPP caps onto PVC, PET, glass bottles, etc.
  • Acasi ROPP capping head model VA90, manufactured in 304 stainless steel and hardened forming discs.
  • Automatic start and stop with presence or absence of containers.
  • Gear driven transmission machine to avoid timing loss.
  • Fully adjustable from 7 inch to 14 inch high containers. (Special configurations available on request).
  • Bottle will pick up cap and the container will be indexed into position.
  • Jamming clutches with electric signal for shutdown on product jamming (This prevents major damage to parts and minimizes possible spills).
REQUEST QUOTE

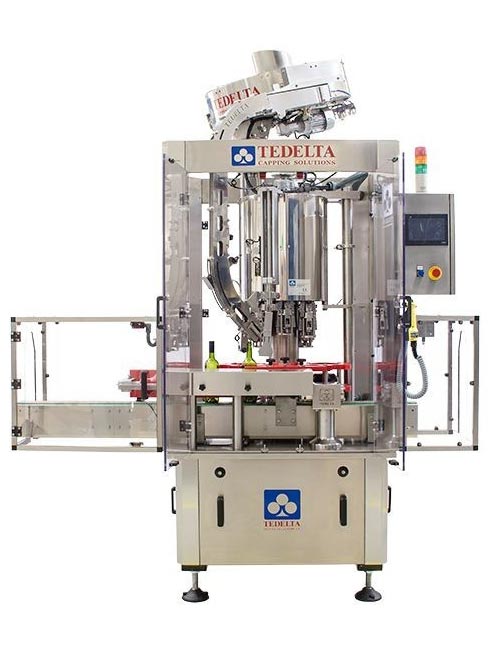

3-Head Automatic ROPP Capper

Model CAR-103

3-head Automatic ROPP capper

Up to 85 bottles per minute

  • Used to apply ROPP caps onto PVC, PET, glass bottles, etc.
  • Rotary capping machine with 3 heads model Tedelta CR-504 in stainless steel or bronze.
  • Turret equipped with pick off system, direct cap transfer. Bottle picks up the caps directly from the cap chute.
  • Missing cap detector to avoid container neck damages.
  • Bottle in feed screw is protected by a safety device, in order to stop the machine if bottles gets jammed.
  • Optical bottle presence detector for automatic start/stop of the machine stop.
  • Quick Star change over part, for one type of bottle.
  • Cap presence check in chute, with minimum and maximum level detection by photocell.
REQUEST QUOTE

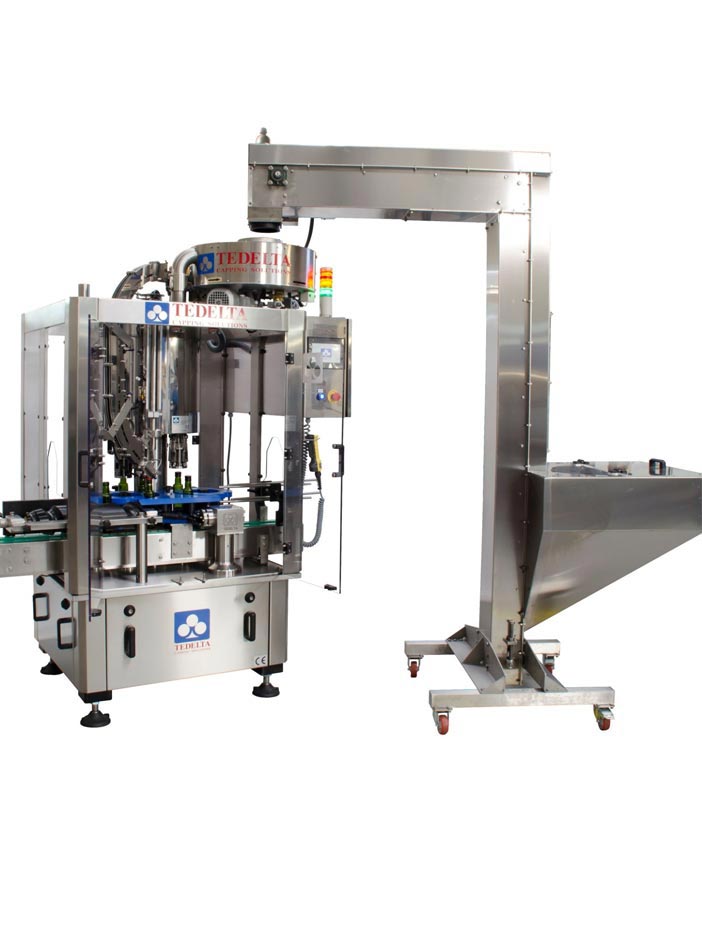

6-Head Automatic ROPP Capper

Model CAR-106

6-head Automatic ROPP capper

Up to 200 bottles per minute

  • Used to apply ROPP caps onto PVC, PET, glass bottles, etc.
  • Rotary capping machine with 6 heads model Tedelta CR-504 in stainless steel or bronze.
  • Turret equipped with pick off system, direct cap transfer. Bottle picks up the caps directly from the cap chute.
  • Missing cap detector to avoid container neck damages.
  • Bottle in feed screw is protected by a safety device, in order to stop the machine if bottles gets jammed.
  • Optical bottle presence detector for automatic start/stop of the machine stop.
  • Quick Star change over part, for one type of bottle.
  • Cap presence check in chute, with minimum and maximum level detection by photocell.
REQUEST QUOTE

We offer a full range of bottling and packaging equipment for the beverages industry. From complete bottling lines to individual machines including: bottle unscramblers, bottle rinsers, bottle fillers, spindle/quill and chuck cappers, labelers, turn tables, and conveyors.

These systems offer great flexibility and their modularity allows you to build and add to the bottling line as your production needs increase. These machines will help you take the headache off of the bottling process so you can focus on offering the best product to your customers.

We can design and make different layouts and conveyor shapes based on your specific floor requirements.
