Acasi Machinery's bottle unscramblers are designed to accommodate a wide variety of automatic plastic, metal and non-fragile containers at various feeding speeds.
Bottle descramblers are used to eliminate the labor intensive process of placing empty bottles on the bottling lines.
Changeovers from one bottle to the other will take less than 15 minutes with the Acasi bottle unscramblers.
ACASI Trusort-48
Includes the following features and options:
-
Automatic Bottle Unscrambler – MODEL ACASI TRUSORT-48
-

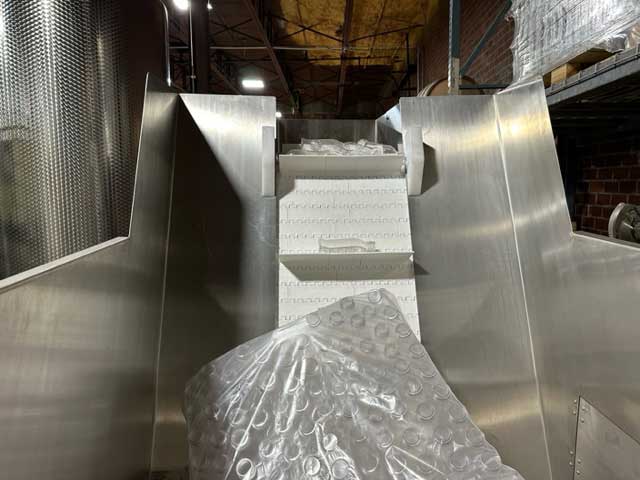

35 cf hopper
-
Heavy duty frame built with 2 x 2 x 0.187 square tubes
-
Adjustable positioning on most systems to minimize change parts requirements
-

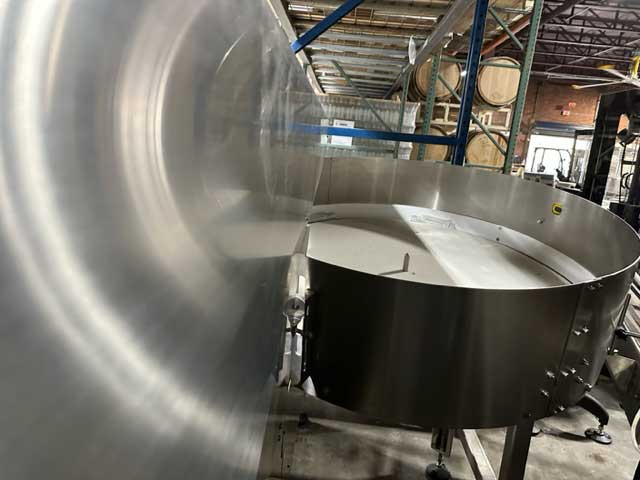

48-inch diameter pre-feeder will accommodate a wide range of containers
-
Calibration markings, labels and indicators to help document changeovers
-
Bottle turning by pneumatic actuator to guarantee production speed
-
Pre-feeder built at an angle to minimize bottle damage
-
Single hand wheel adjustment for intake and delivery carrier belts
-
Spacing belt for bottle feeding and spacing, gear motor driven
-
Delivery carrier belts have additional adjustments to guarantee container placement on conveyor
-
Single gearbox for main belt system eliminates all the belts and springs of the transmission system, powered by ¾ Hp motor
-
Bottle handling from left to right
-
Complete height adjustment with bottle setting guide for quick changeovers
-
Tool-less changeovers
-
220 Volts, 60Hz, 10 Amps | 5 CFM @ 80 psi
