SOLD

Servo-driven Piston Filler and Inline Spindle Capper For Sale

Pre-Owned Acasi Trupiston-8-Servo and Trucap-8-Vert

8-head Servo-driven piston filler and Inline 8-spindle capper

Get your hands on two high-performance machines from Acasi Machinery - the Trupiston 8 Servo and the Trucap-8-Vert - at a fraction of their original price.

The Trupiston 8 Servo, an 8-head servo-controlled piston filler, is Acasi's most accurate machine. It's a versatile powerhouse, capable of filling a wide range of liquids, from low viscosity to high viscosity, and even with breakable particulates of up to 3/4". It's also equipped for hotfills of up to 200 degrees F. It comes with a 60-gallon double-walled tank to run low-pressure steam or hot water through it, to maintain the product's temperature.

The Trucap-8-Vert, an 8-spindle inline capper, features spring-loaded spindles that follow the contour of the bottle, ensuring a perfect cap every time.

These machines have proven their worth in a variety of industries, from beauty and personal care to food production, handling products such as creams, shampoos, conditioners, peanut butter, dressings, and mayonnaise.

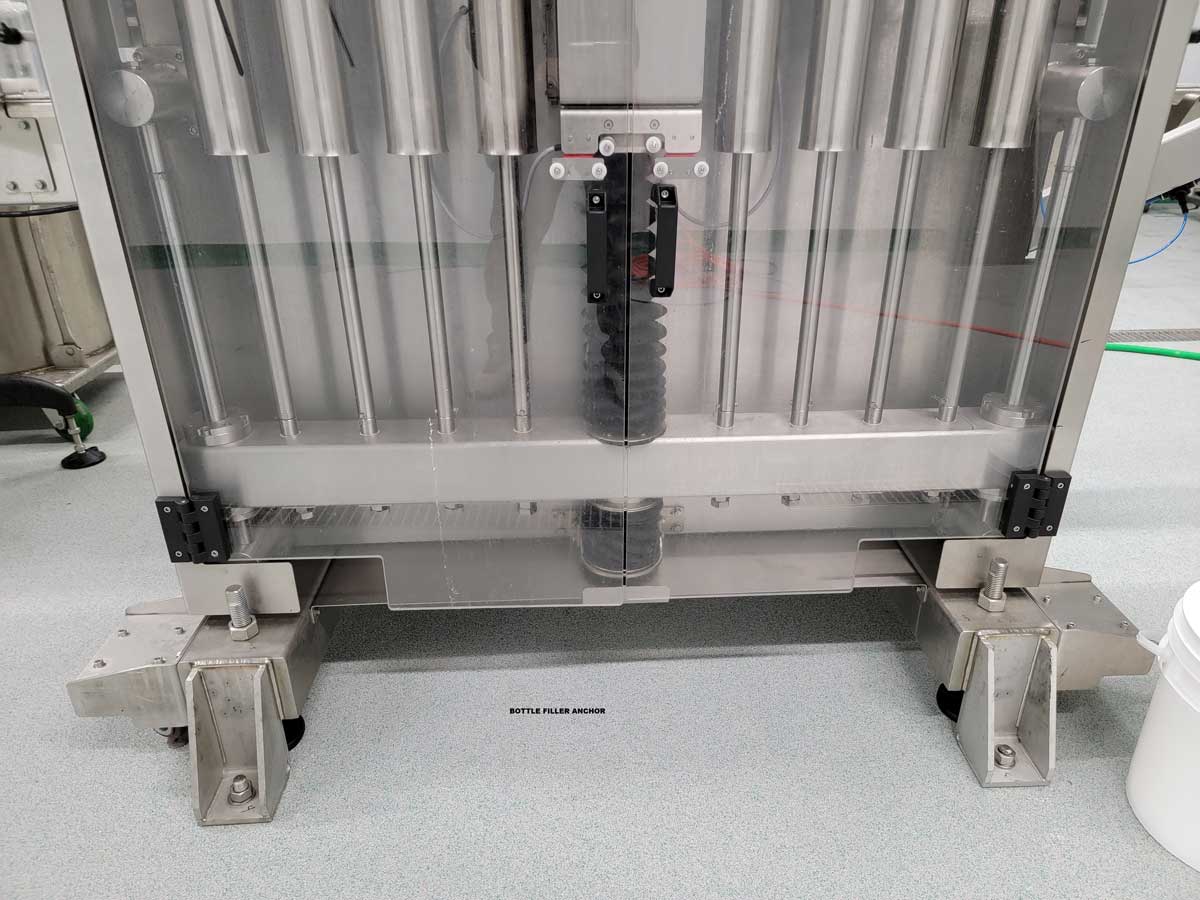

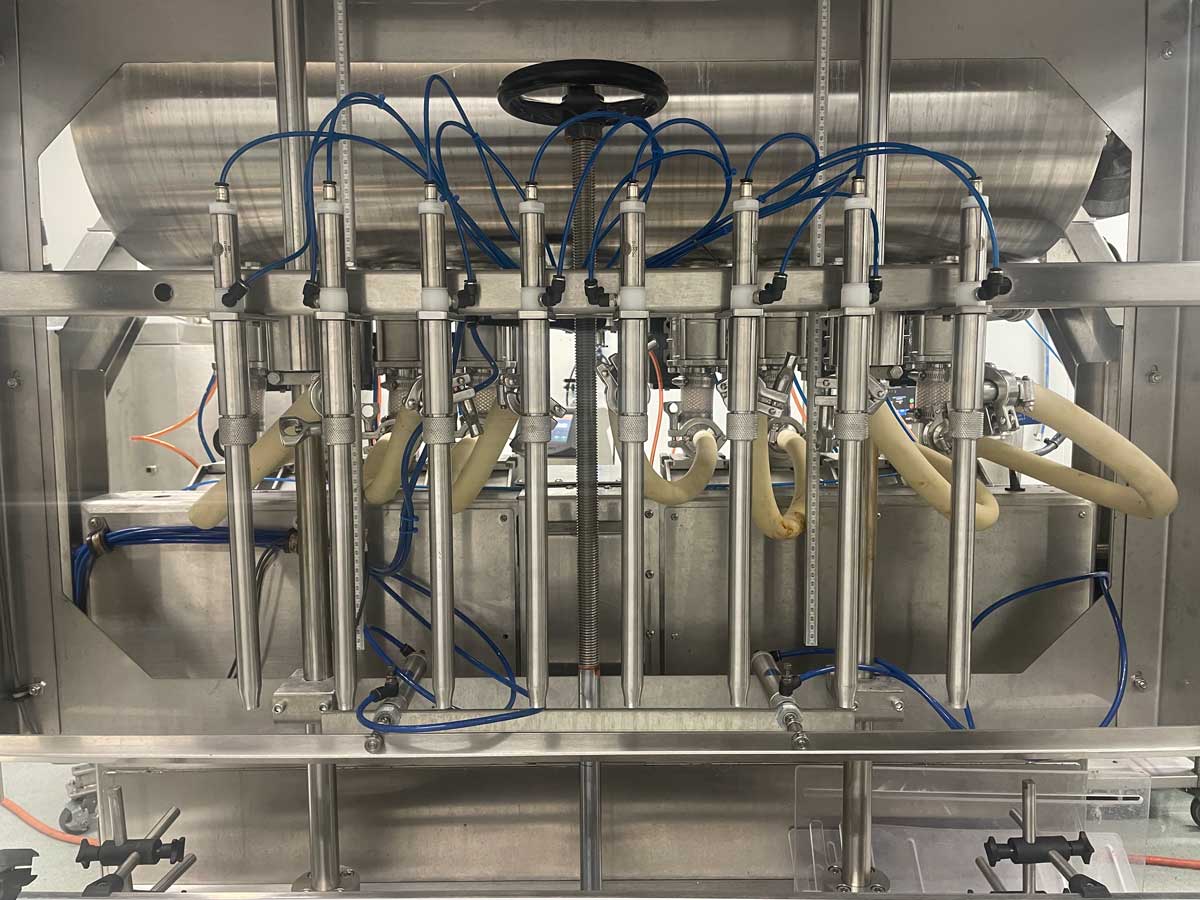

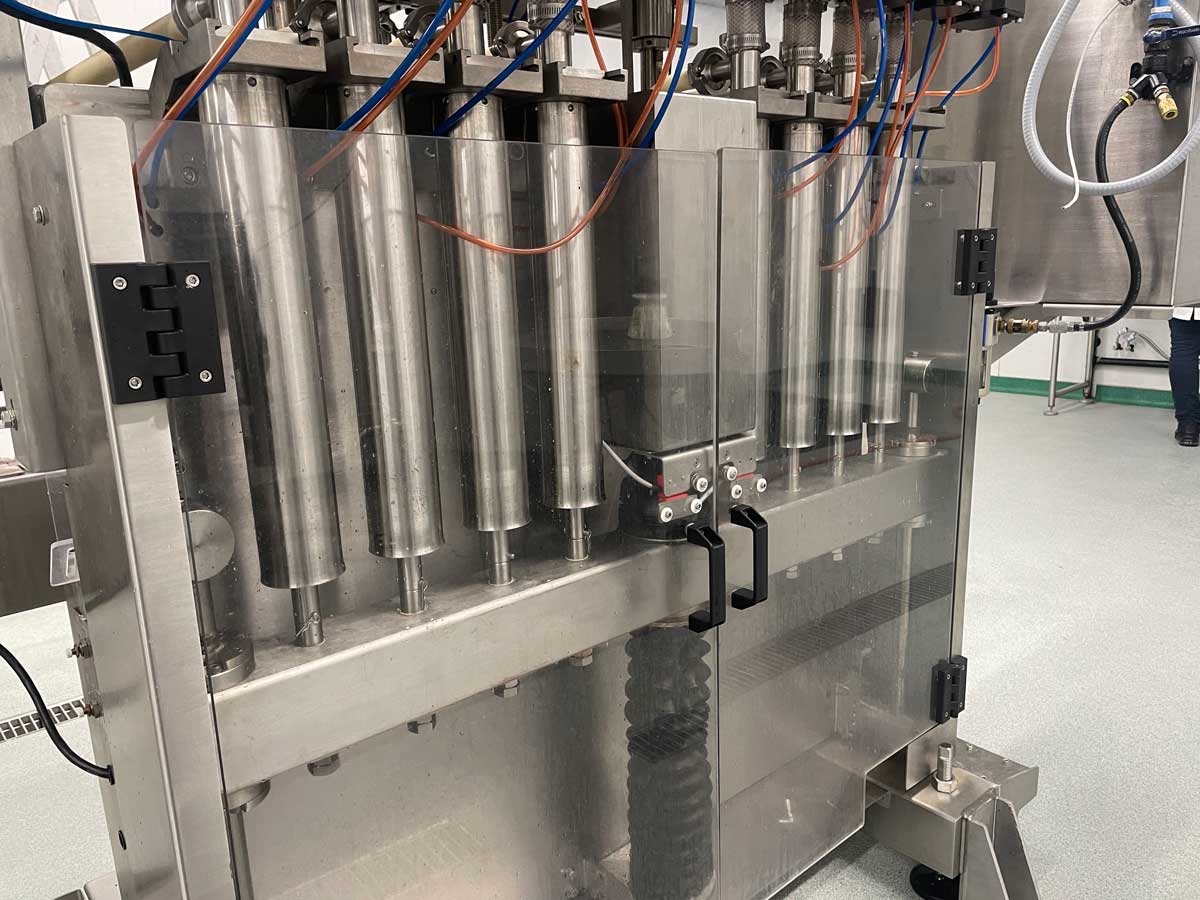

SERVO-DRIVEN PISTON FILLER

Includes the following features and options:

  • 8-head servo-driven piston filler MODEL ACASI TRUPISTON-8-SERVO
  • OSHA compliant guard package with interlocks
  • Washdown upgrade - motors, sensors, ball screw motion covered with bellows and sealed, servo motor, HMI with additional covered seal, washdown buttons
  • (8) 50 oz max fill, rotary valve pistons in 316L SS
  • (8) 3/4 in. IBSO Drip-free Bottom-up nozzles in 316L SS with sanitary connections
  • (8) 3/8 in. IBSO Drip-free Bottom-up nozzles in 316L SS with sanitary connections
  • Hot-fill tubing for up to 200 degrees F
  • Pneumatic-actuated drip tray controlled via PLC
  • 60 Gallon 304 SS tank with double wall for low pressure steam at 40 psi and agitation with AC motor speed control via HMI
  • Product in-feed control via pneumatic-actuated ball valve
  • Tank level control via mechanical valve actuated by 5 inch stainless steel float
  • Pressure switch for electrical circuit connections (electric pump start and stop)
  • 10 Ft. Conveyor, 4.5 in. wide acetyl chain, with speed control installed in filler's control
  • 208V 3-phase | 5CFM @ 80psi

Aftermarket add-ons:

  • Specially fabricated CIP spray attachment
  • Structural Bolting Attachments (Designed by licensed Structural Engineer)

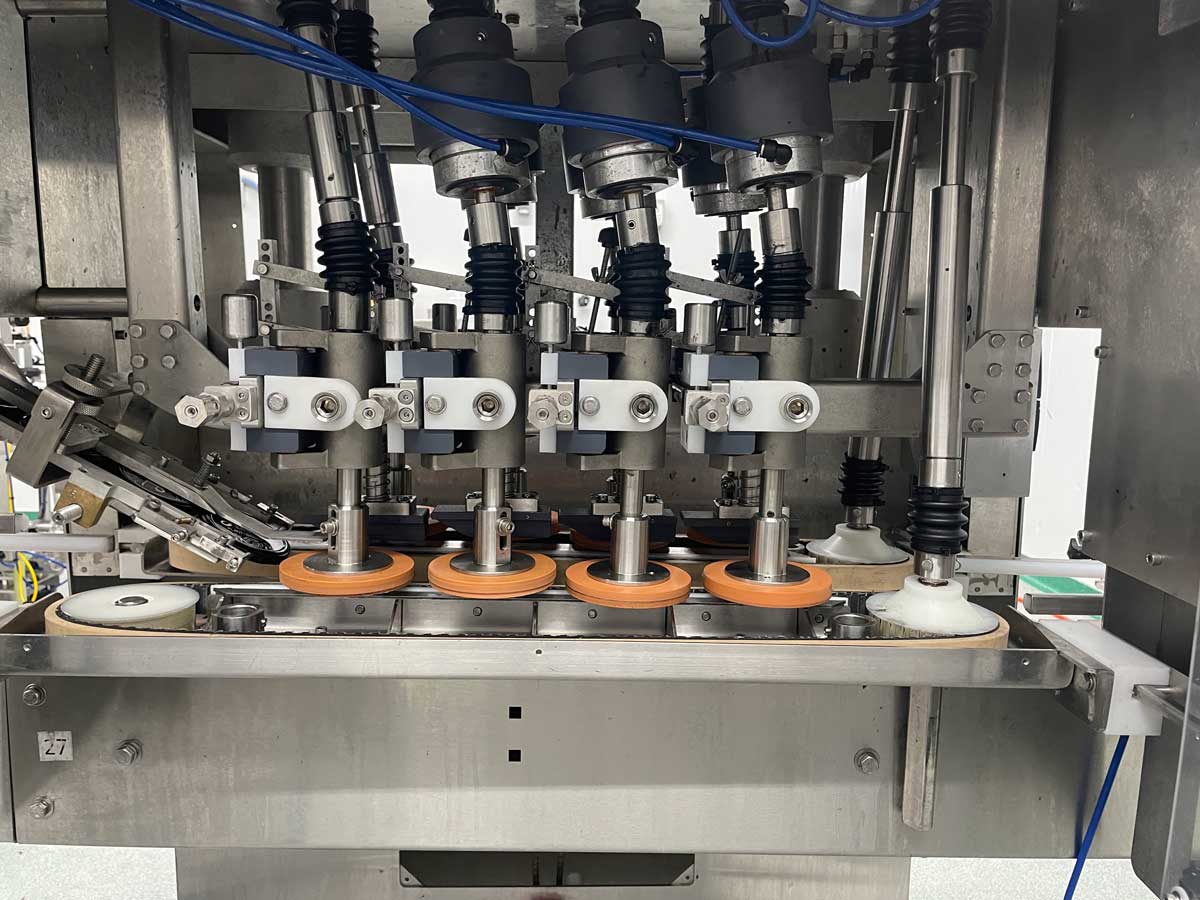

INLINE SPINDLE CAPPER WITH VERTICAL WHEEL CAP FEEDER

Includes the following features and options:

  • 8-spindle automatic capper with vertical wheel cap feeder MODEL ACASI TRUCAP-8-VERT
  • OSHA compliant guard package with interlocks
  • Washdown upgrade - washdown motors, ceramic bearings and/or bearing protection caps
  • Pneumatic clutches, set for 8-spindle machines. Includes pressure regulator for each one
  • Additional set of gripper belts with independent adjustment
  • Dial indicators for belt adjustment
  • 13ft Conveyor, 4.5 in. wide acetyl chain, with VFD
  • 208V single-phase | 10CFM @ 80psi

Aftermarket add-ons:

  • Structural Bolting Attachments (Designed by licensed Structural Engineer)

Videos of the machines during Factory Acceptance Tests

Equipment sold "As Is", "Where Is" FOB Location.
Removal and loading expenses may apply.
Skidding will be performed at cost to the buyer.
Buyer pays for transportation costs.
Installation is not included.
