This capping machine can handle a wide range of caps and containers without change parts and is more forgiving and easier to set up than most bottle capping equipment in the industry.

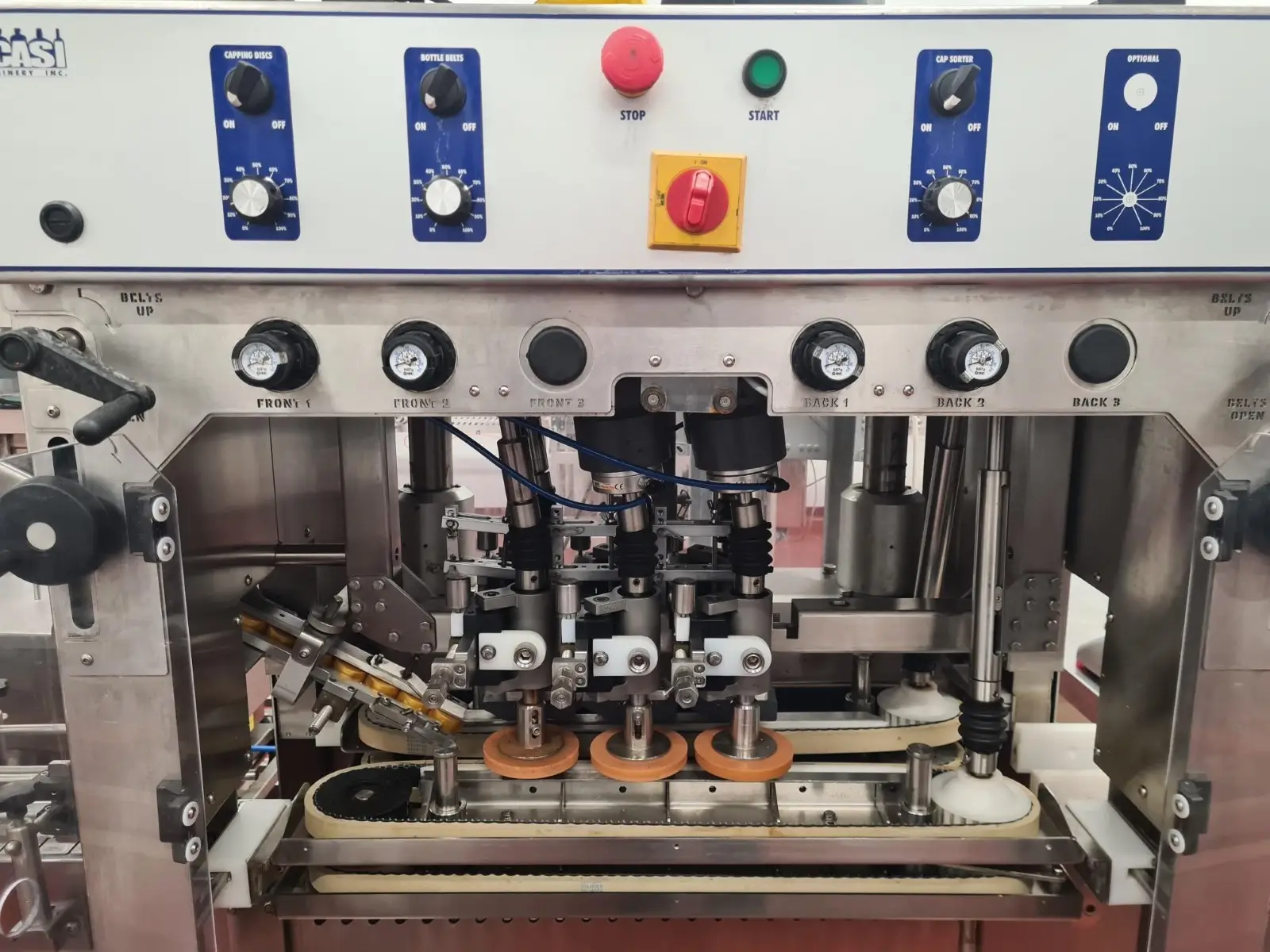

Acasi Trucap-6
Includes the following features and options:
-

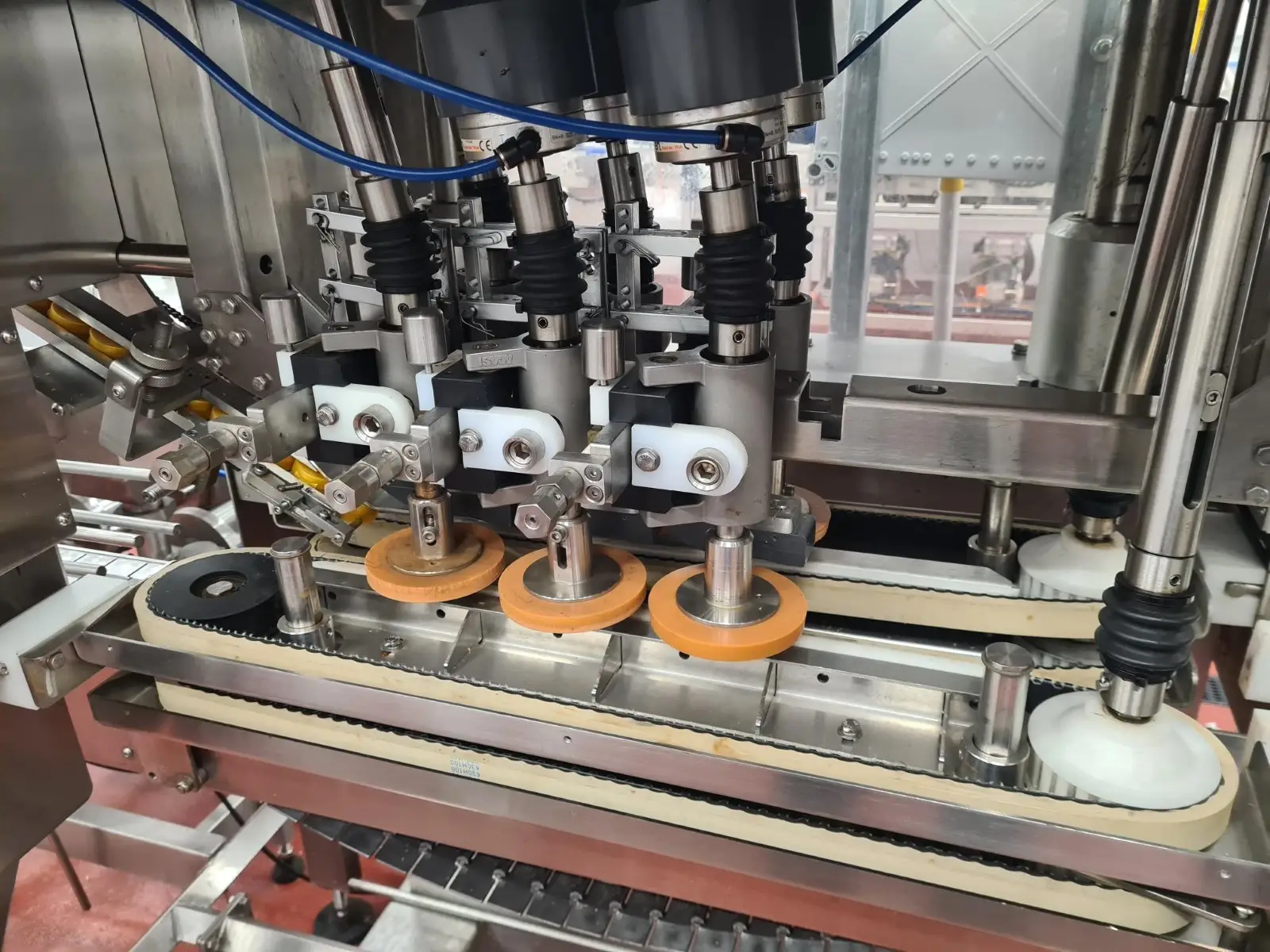

Inline cap tightener with 6 spring-loaded spindles
-
Pneumatic clutches, includes pressure regulator for each one
-
Double belts
-
Heavy duty 304 stainless steel welded C frame for easy mounting over existing conveyors.
-
220V, Single-Phase, 50Hz/60Hz, 10 Amps | 5 CFM @ 80 psi
-
Heavy duty linear carriage system for height adjustability.
-
All shafts and threaded rods manufactured in 304 stainless steel.
-
Front covers with safety interlock switches standard.
-
Top driven to insure no product spillage into drive assembly.
-
Adjustable height to accommodate containers from 1 inch to 14 inches tall.
-
Independent spring loaded bottle capping discs for better torque and misalignment forgiveness.
-
Torque is able to be adjusted while the machine is running.
-
Clutches located away from capping discs to avoid corrosion.
-
Heavy duty gear driven mechanism, no belts used for power transmission Adjustable speed 1/2 Hp drive motor for capping discs.
