12-Head Servo-driven Piston Filler For Sale

Pre-Owned Acasi Trupiston-12-Servo

12-head Servo-driven piston filler

Get your hands on this high-performance machine from Acasi Machinery - the Trupiston 12 Servo - at a fraction of their original price.

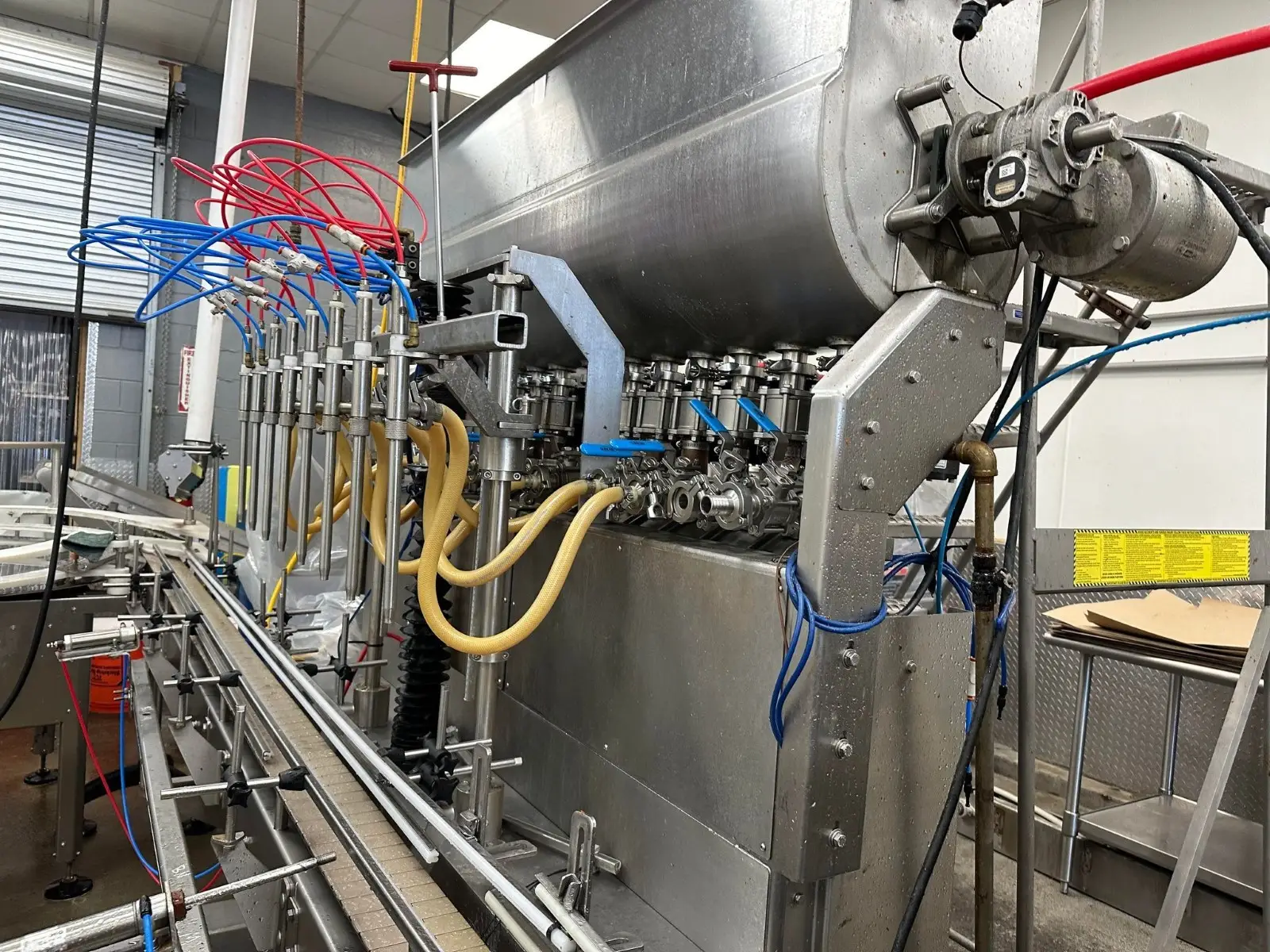

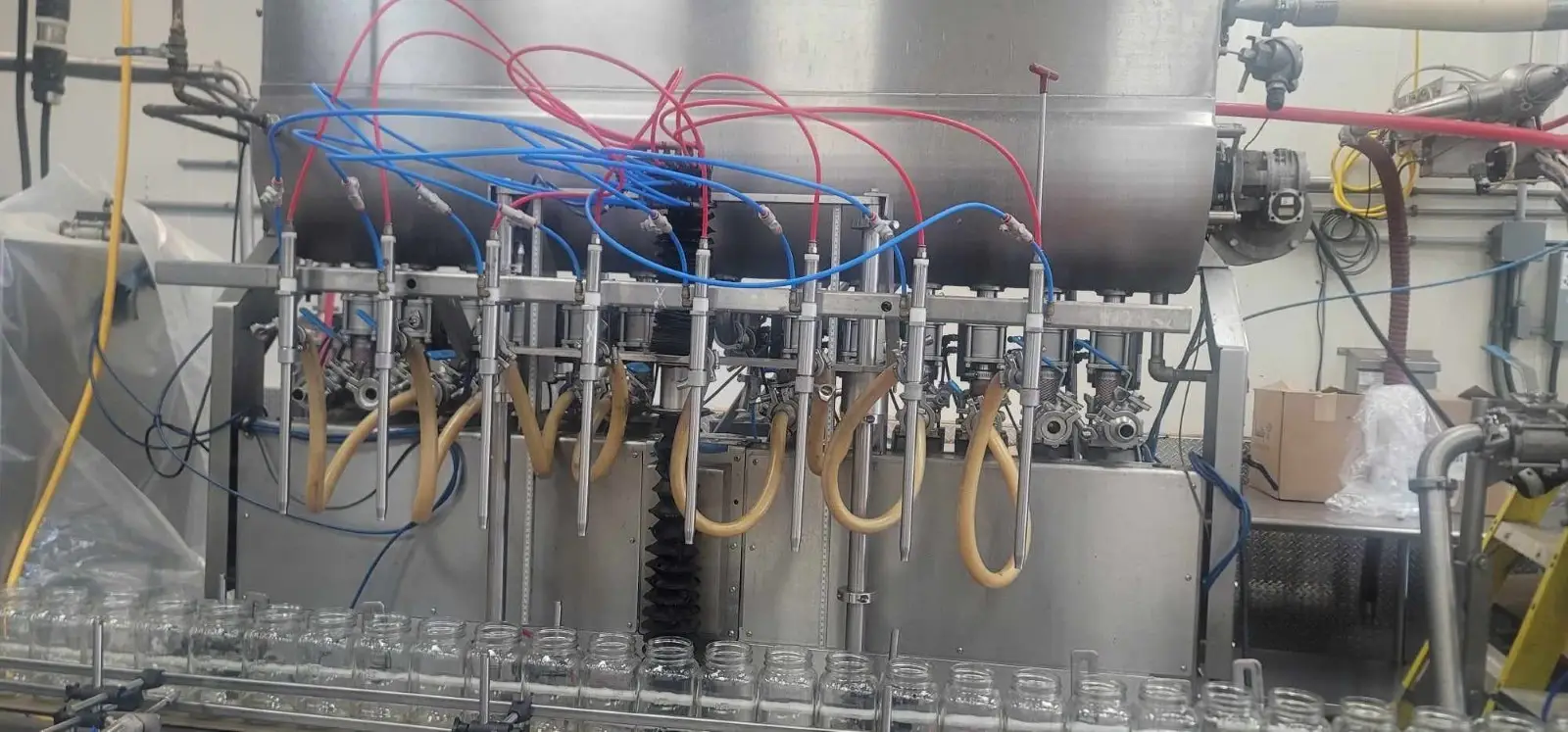

The Trupiston 12 Servo, a 12-head servo-controlled piston filler, is Acasi's most accurate machine. It's a versatile powerhouse, capable of filling a wide range of liquids, from low viscosity to high viscosity, and even with breakable particulates of up to 3/4". It's also equipped for hotfills of up to 200 degrees F. It comes with a 80-gallon double-walled tank to run low-pressure steam or hot water through it, to maintain the product's temperature.

The machine comes with 3 sets of nozzles to fill a wide-range of bottle sizes.

These fillers have proven their worth in a variety of industries, from beauty and personal care to food production, handling products such as creams, shampoos, conditioners, peanut butter, dressings, and mayonnaise.

ACASI TRUPISTON-12-SERVO

Includes the following features and options:

  • 12-head servo-driven piston filler
  • High-precision, Servo electrically-driven ball screw movement for nozzles
  • Washdown upgrade - motors, sensors, ball screw motion covered with bellows and sealed, servo motor, HMI with additional covered seal, washdown buttons

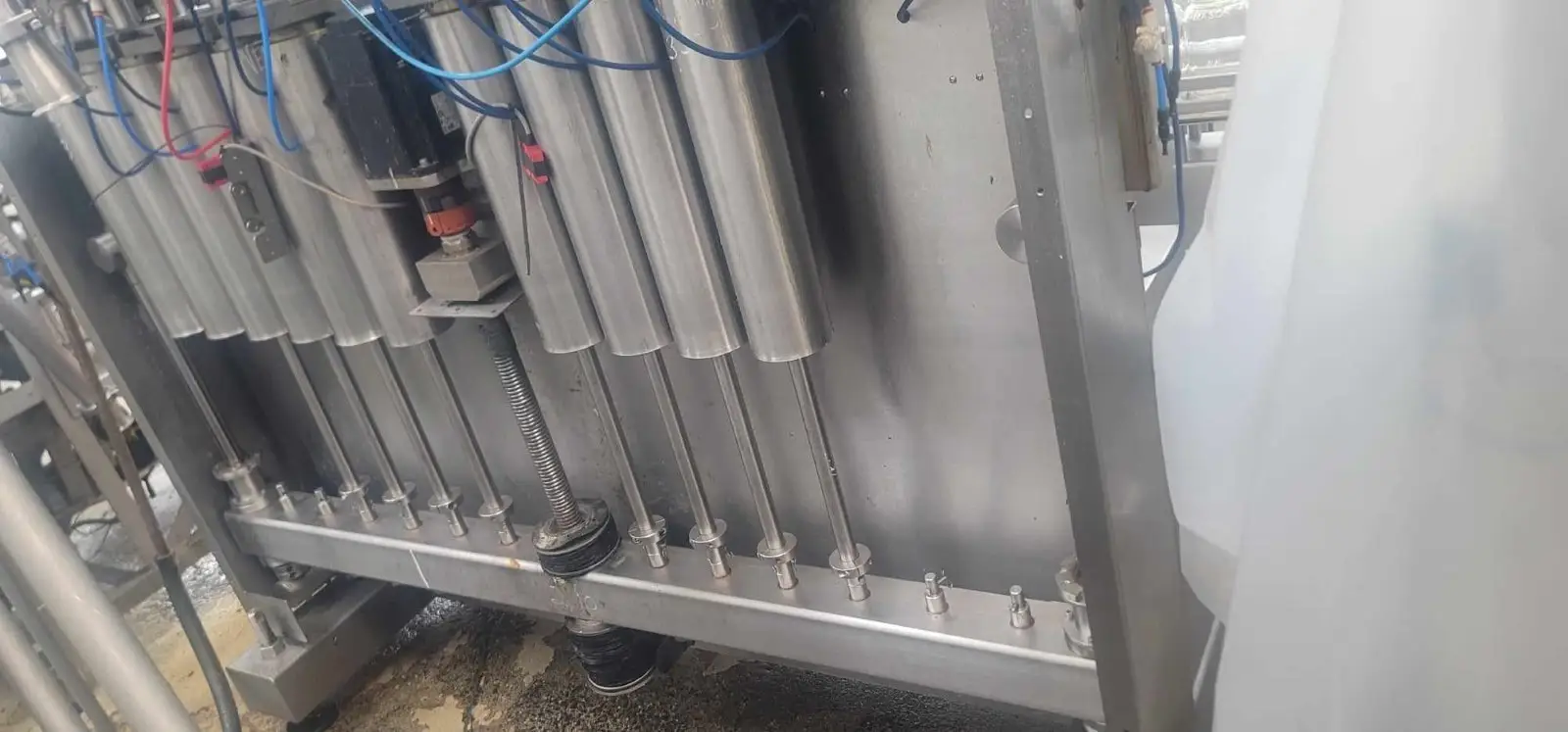

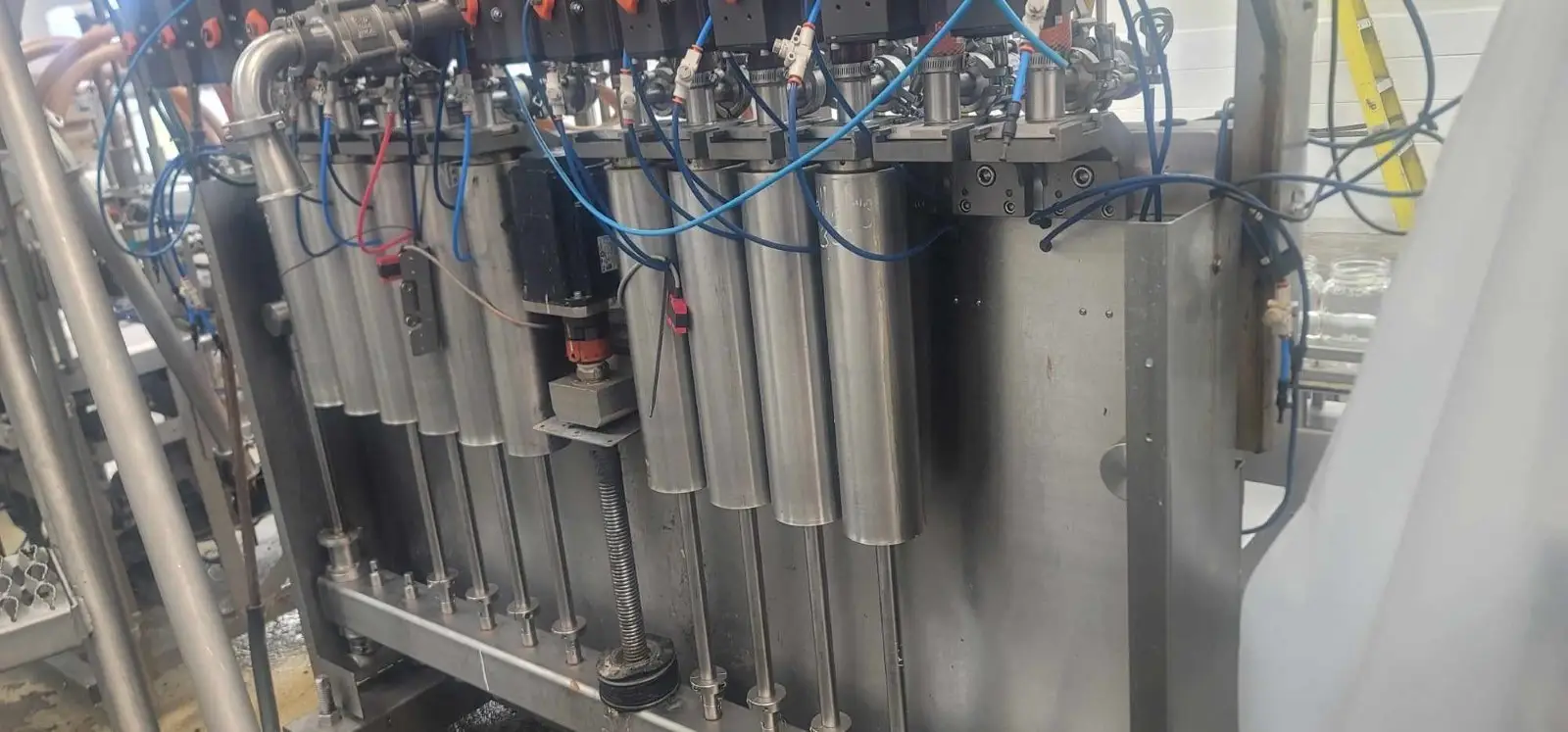

  • (12) 109 oz single-stroke max fill, rotary valve pistons in 316L SS

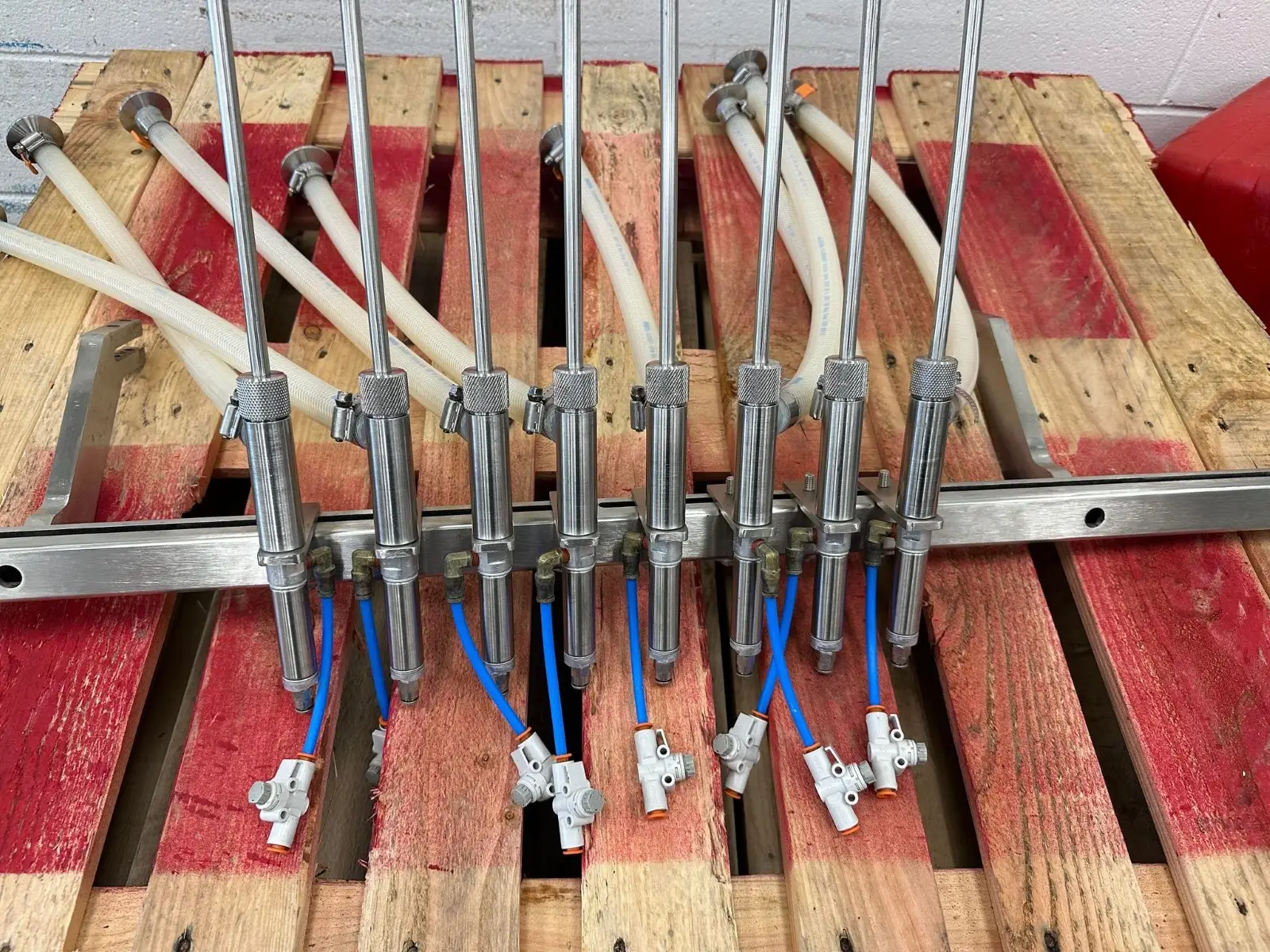

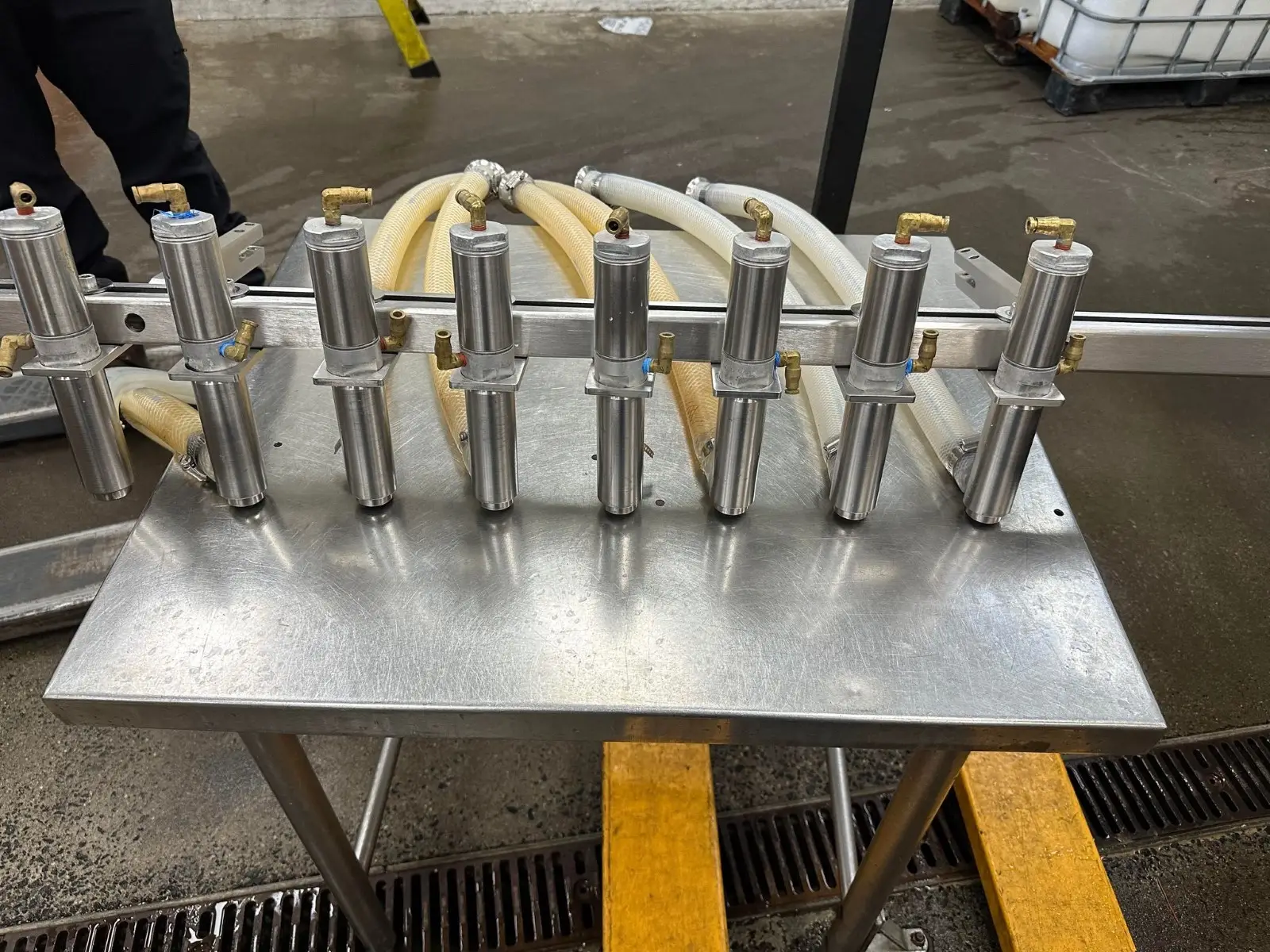

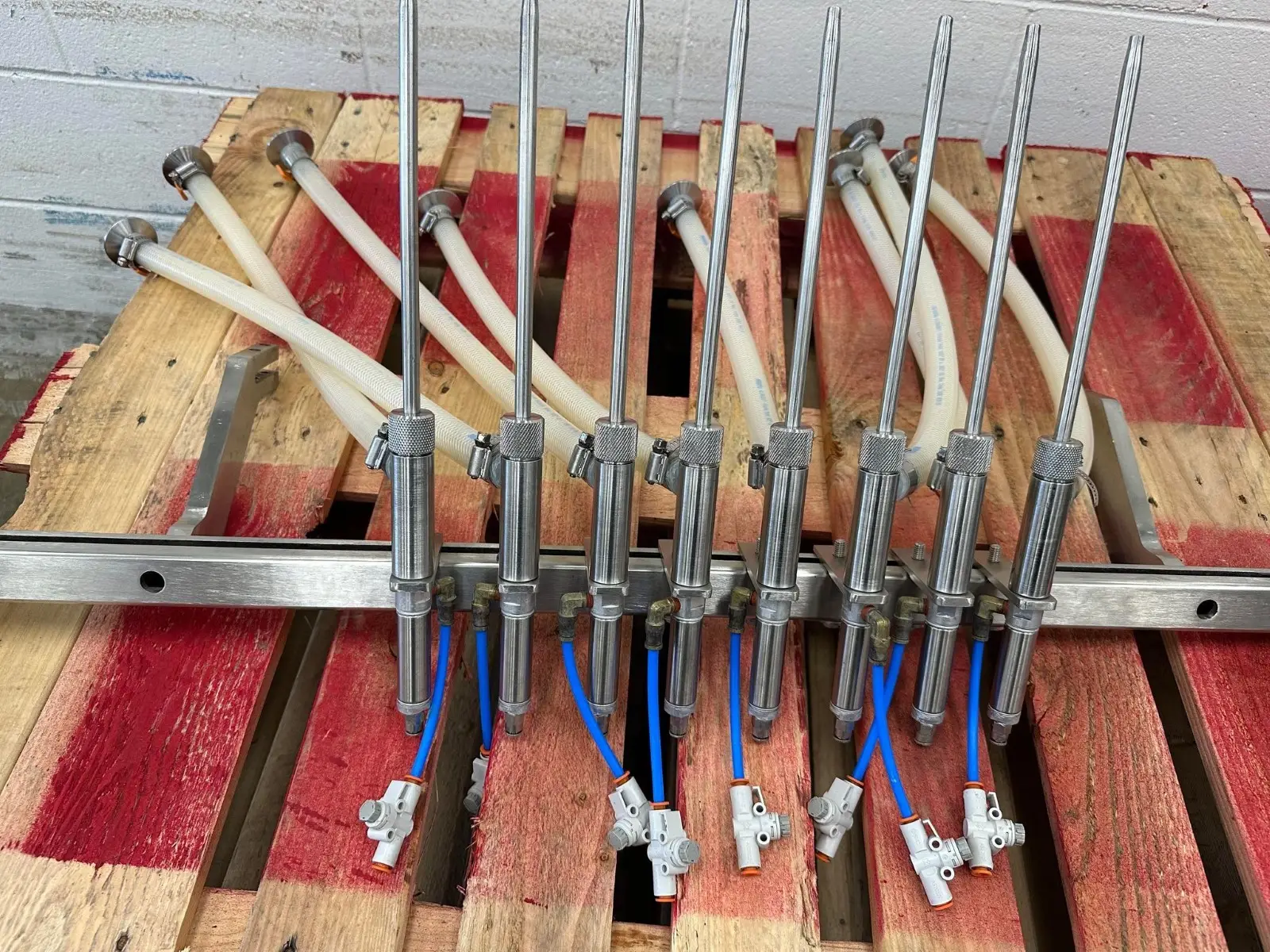

  • (12) 3/8-in. IBSO Drip-free Bottom-up nozzles in 316L SS with sanitary connections, nozzle bar, and tubing
  • (12) 5/8-in. IBSO Drip-free Bottom-up nozzles in 316L SS with sanitary connections, nozzle bar, and tubing

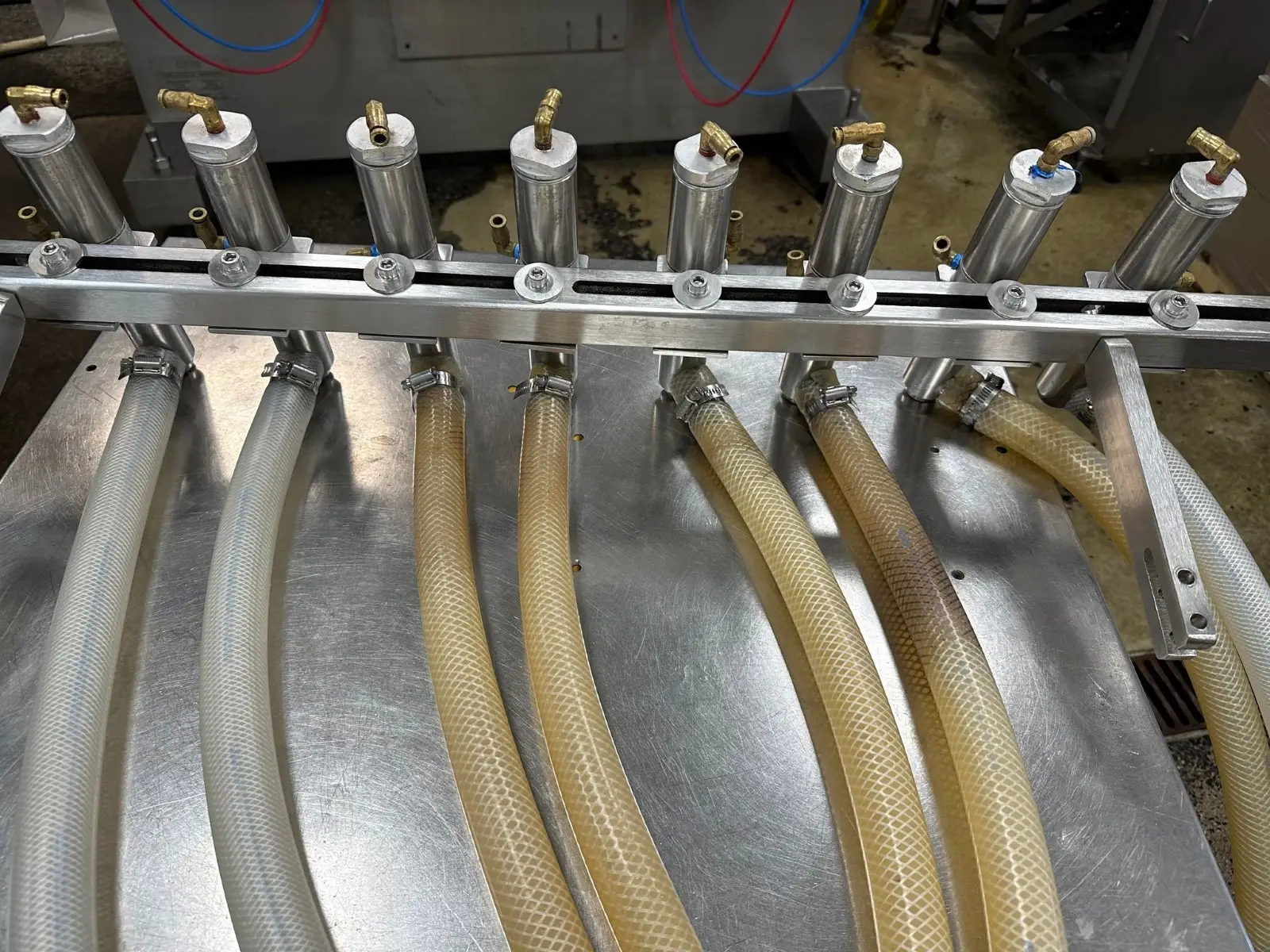

  • (12) 1-in. IBSO Drip-free short nozzles in 316L SS with sanitary connections, nozzle bar, and tubing
  • Hot-fill tubing for up to 200 degrees F
  • Pneumatic-actuated drip tray controlled via PLC

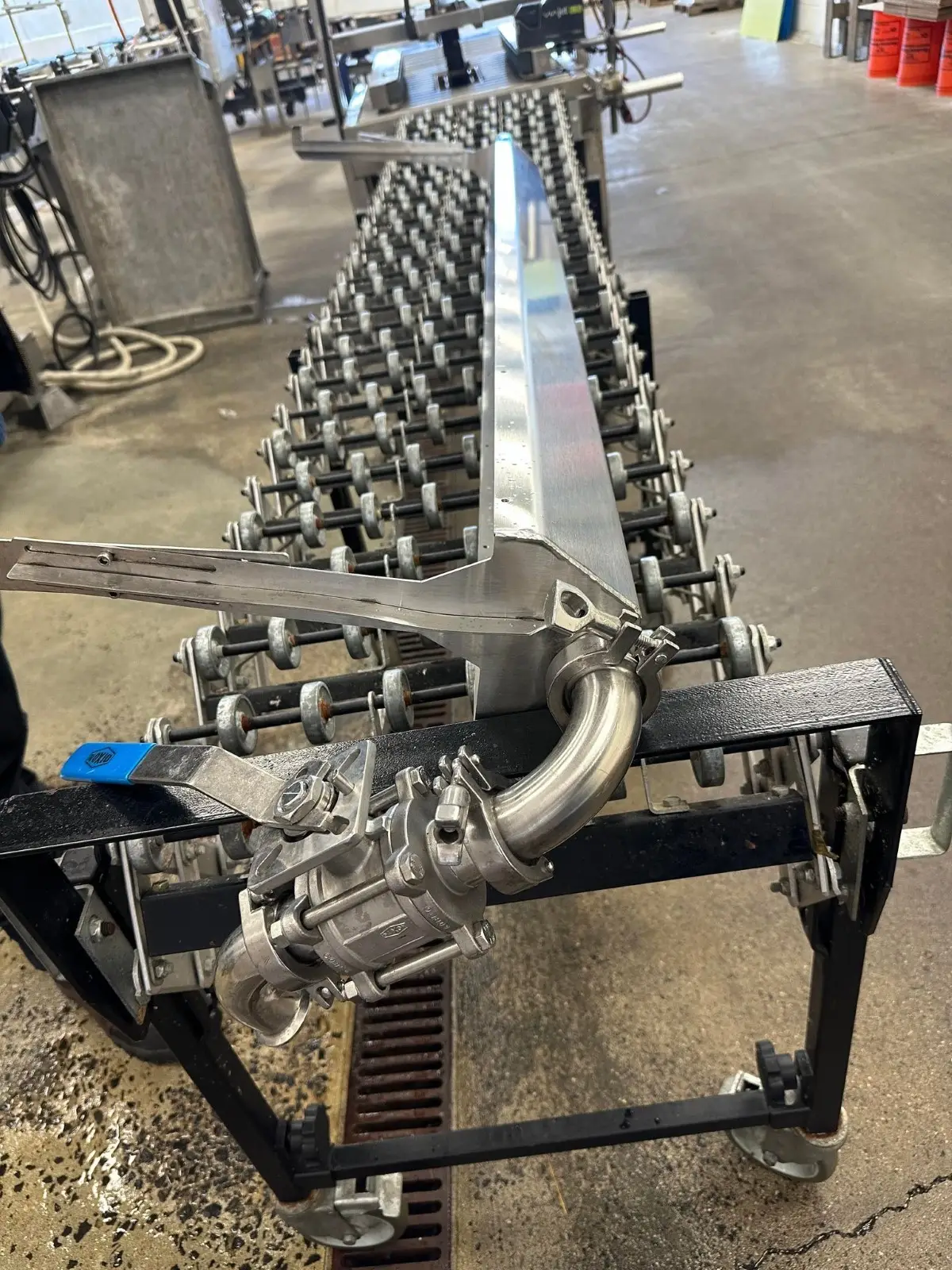

  • Custom PLC controlled, CIP/Priming tray with large outfeed and pump for priming product to get to appropriate temperature

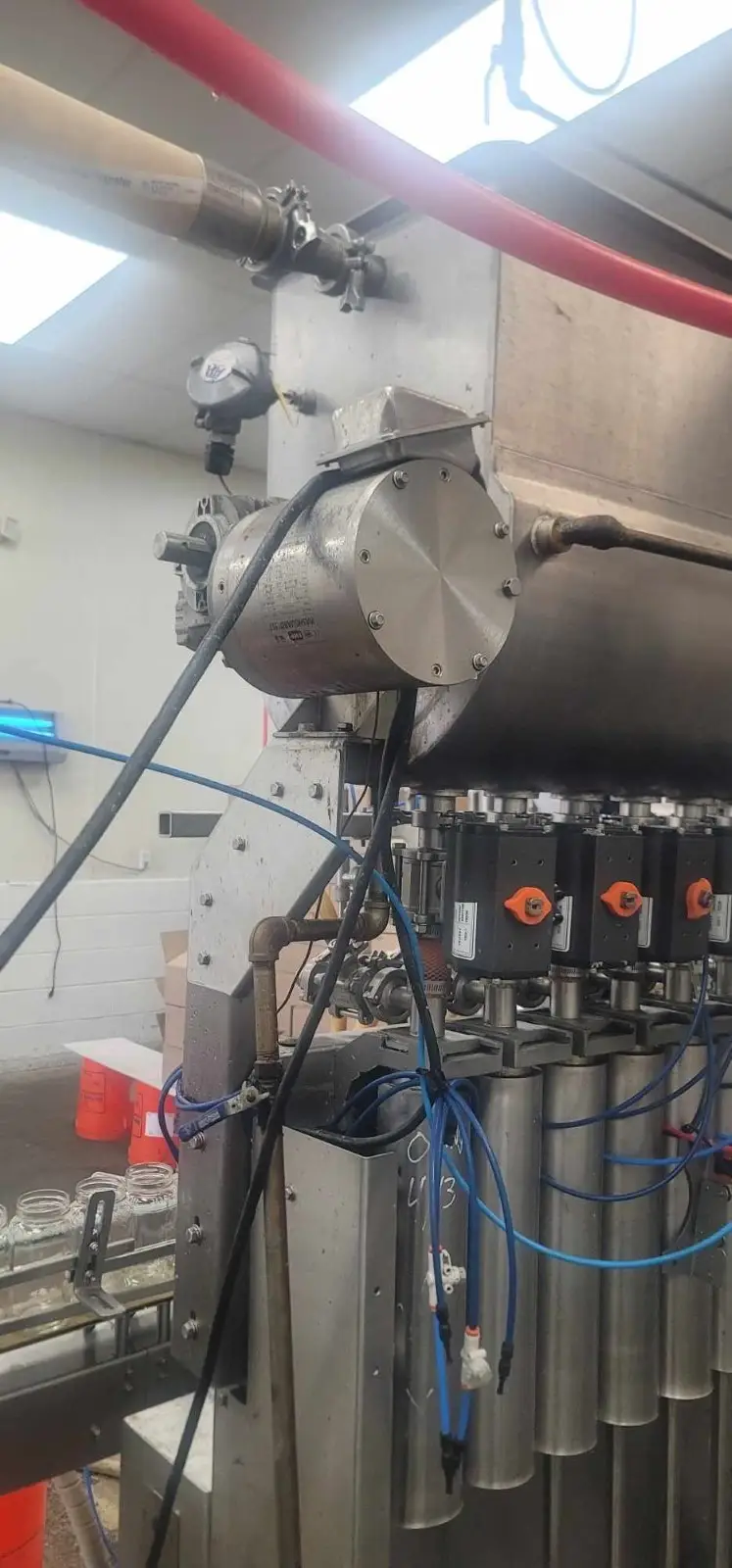

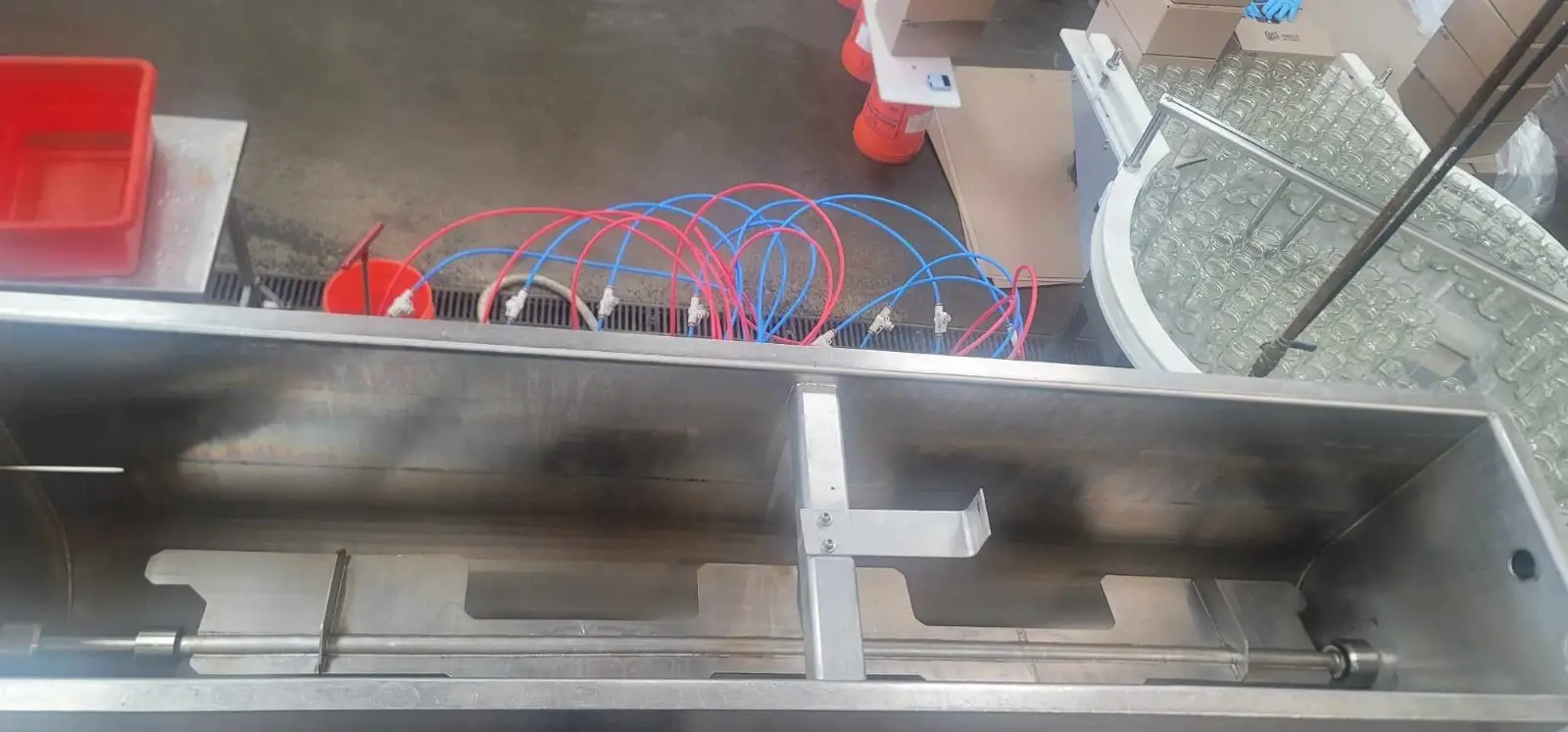

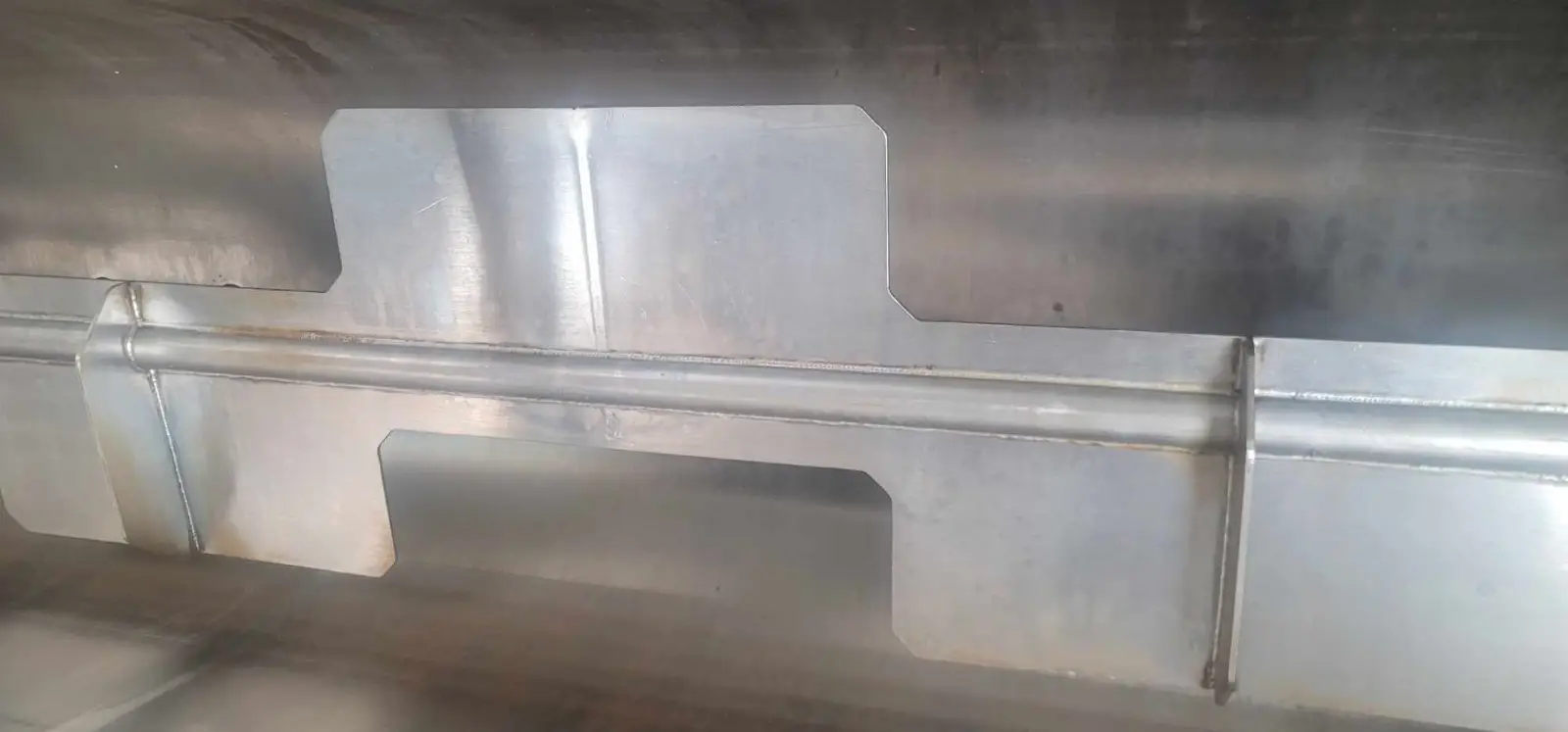

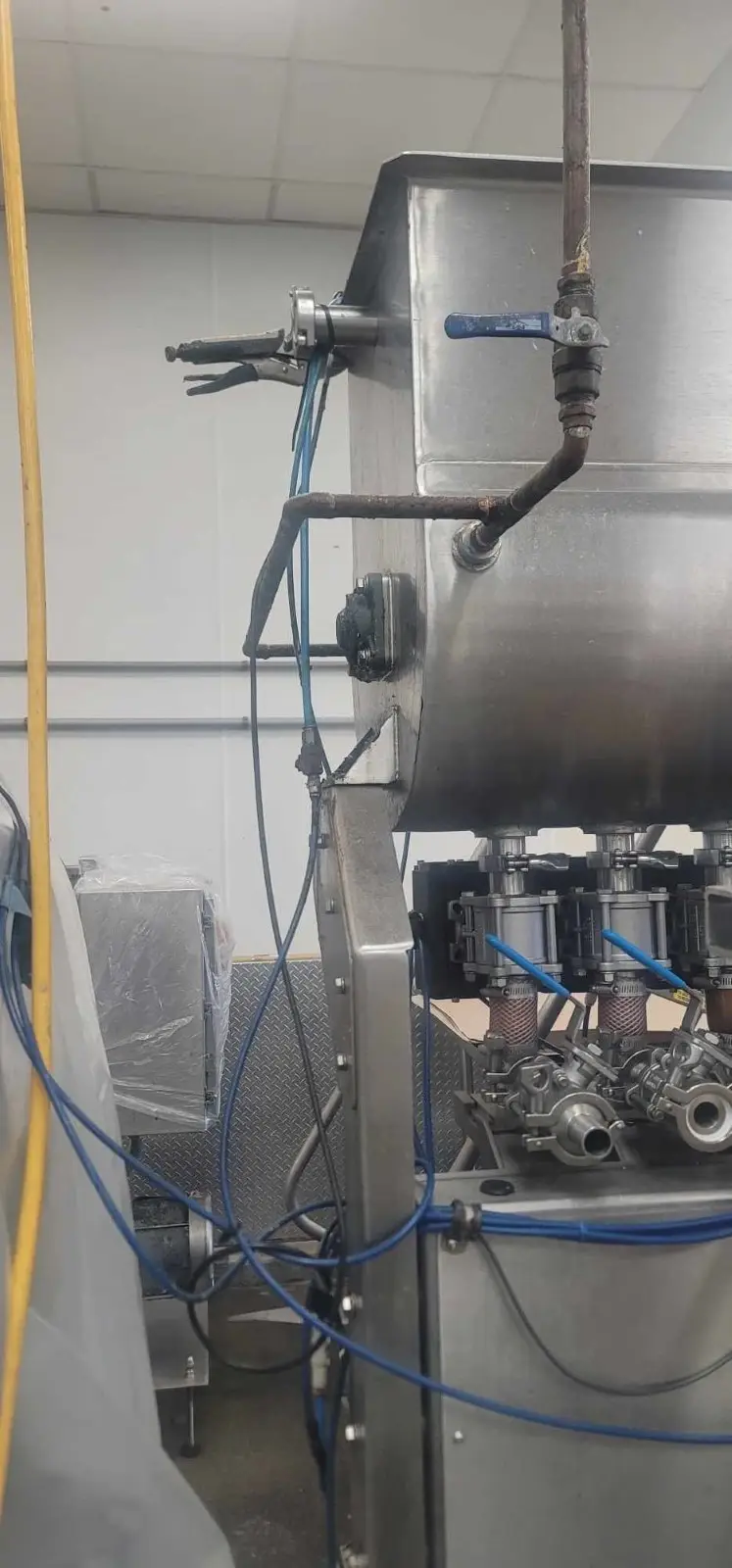

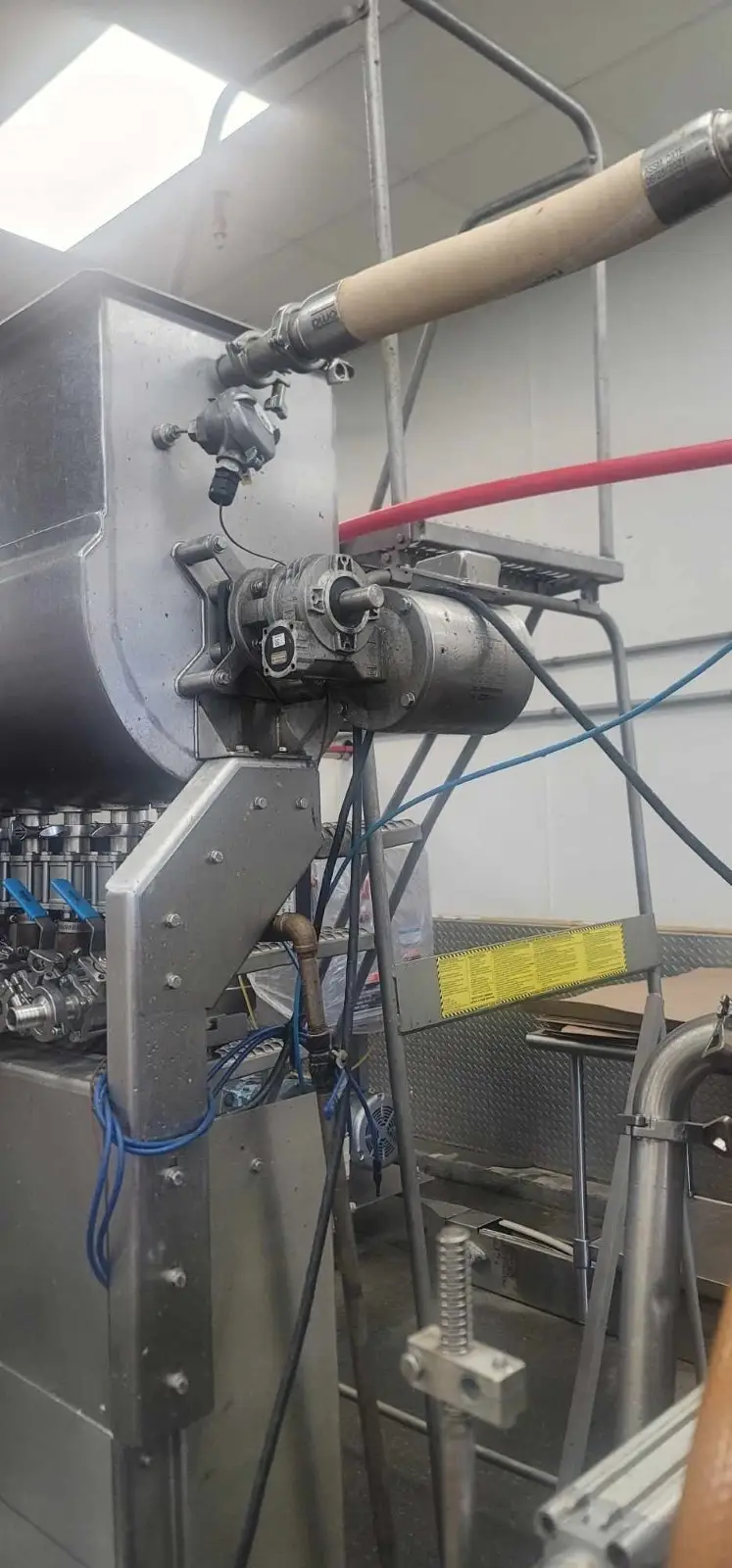

  • 80 Gallon 304 SS tank with double wall for low pressure steam at 40 psi and agitation with AC motor speed control via HMI, includes bottom drain with sanitary clamp

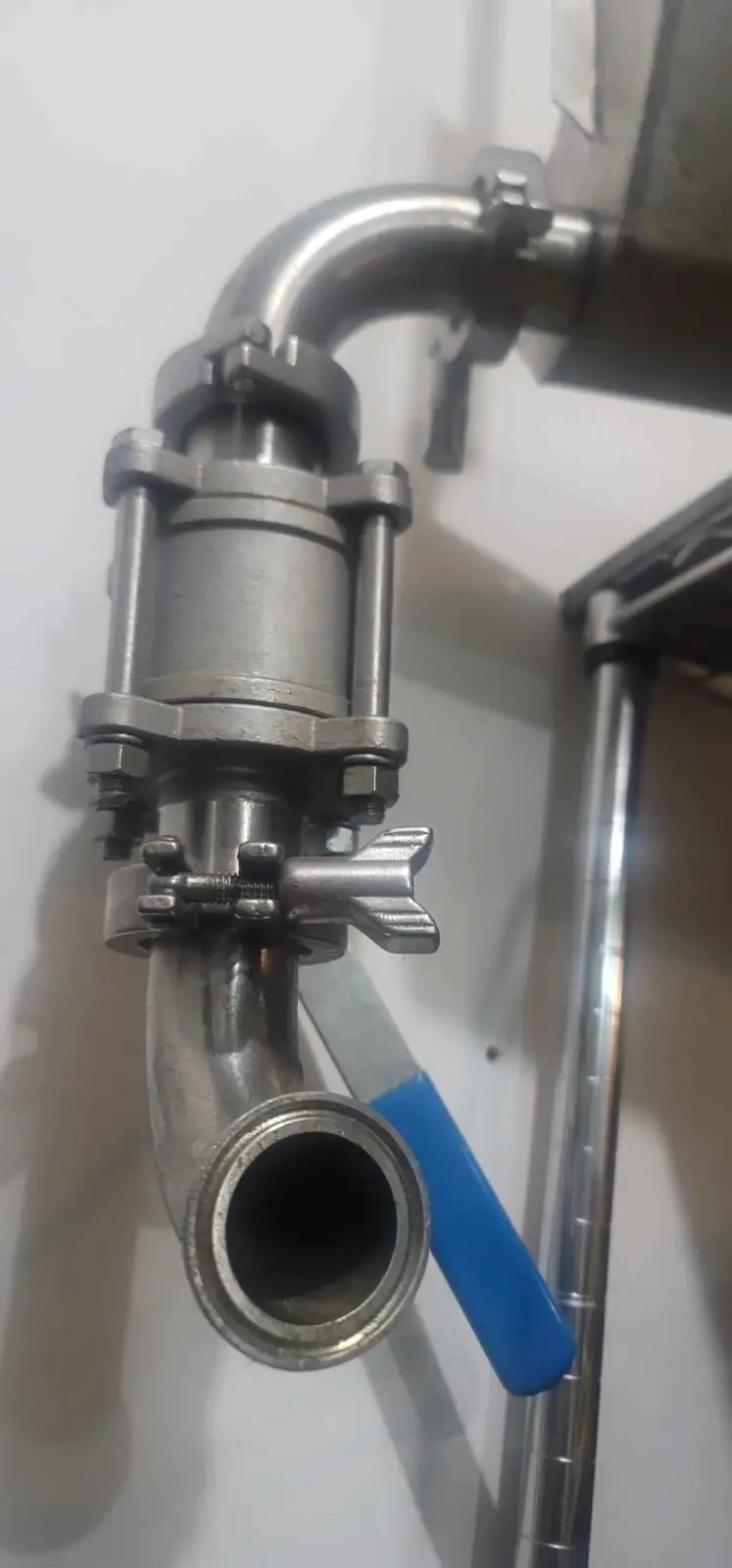

  • Product in-feed control via pneumatic-actuated ball valve
  • Digital thermostat in tank with temperature display
  • Ultrasonic tank level control
  • Pressure switch for electrical circuit connections (electric pump start and stop)

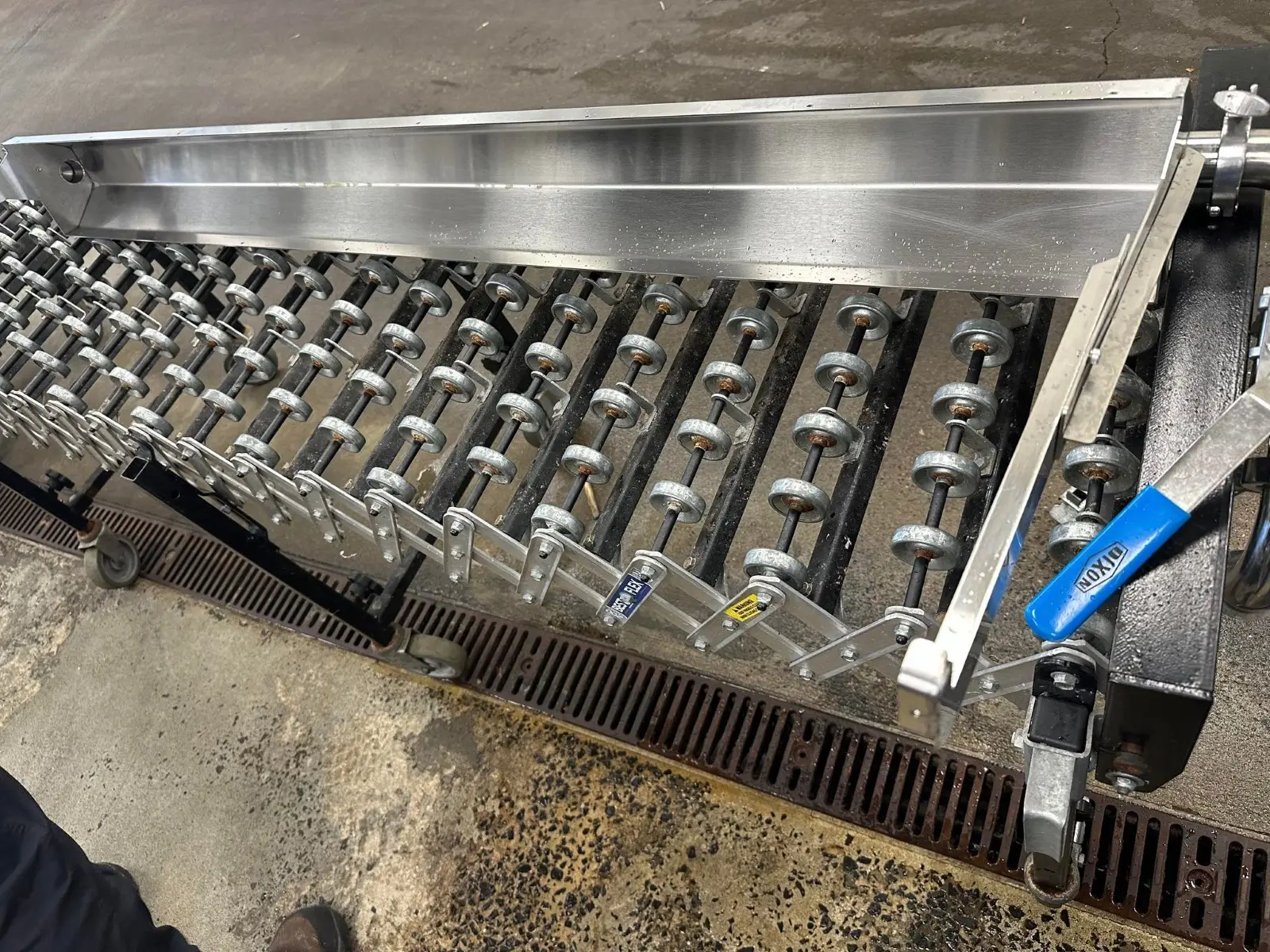

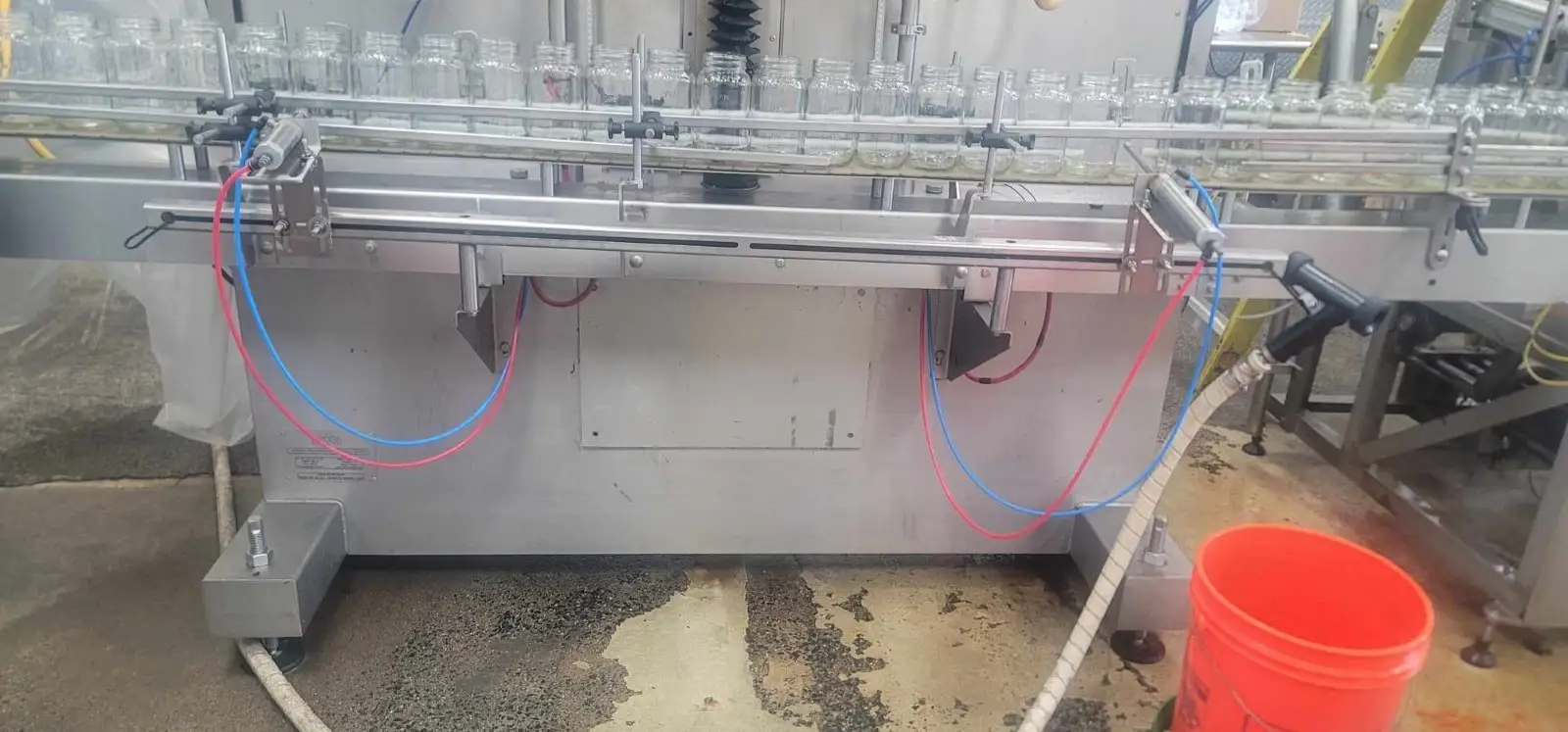

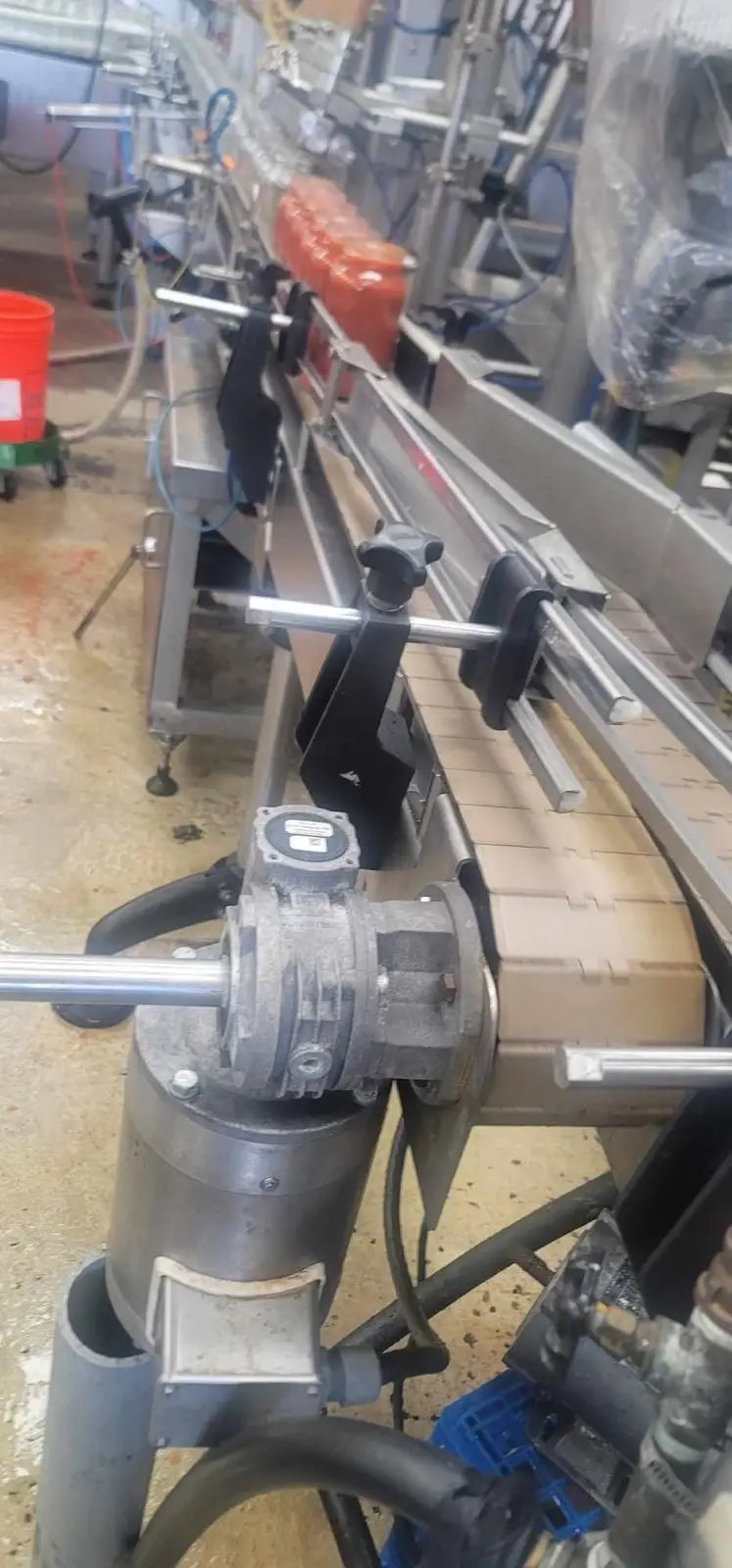

  • 20 Ft. Sanitary Conveyor, 4.5 in. wide acetyl chain, with speed control installed in filler's control
  • 220V Single-phase | 5CFM @ 80psi

Videos

Equipment sold "As Is", "Where Is" FOB Location.
Removal and loading expenses may apply.
Skidding will be performed at cost to the buyer.
Buyer pays for transportation costs.
Installation is not included.
